Specification

Material: Stainless Steel 304 / SS 316 / SS201

Type: Rigid Mesh

Opening Area: 82%

Weight: Approx 2.5kg/Square Meter

Finish: Mill Finish

Screen Width: Customized.

Screen Length: Customized.

GET A QUOTE

Introduction

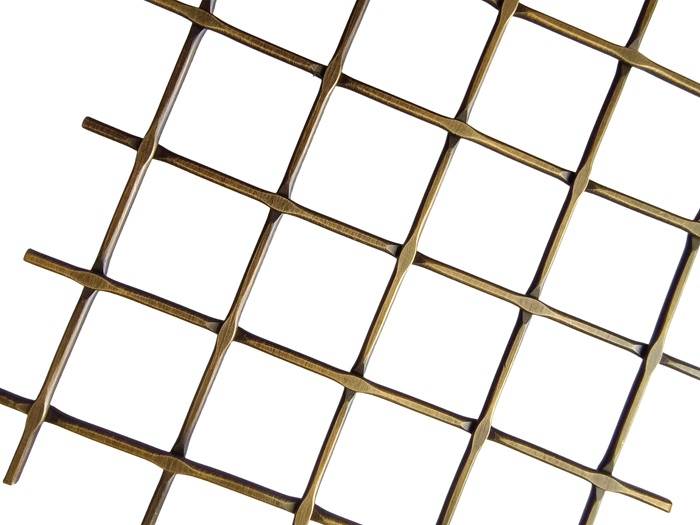

METART WW10 is a simple and affordable pattern of decorative woven wire mesh. As the aperture is quite big, thus it is not suitable for security purposes. But this stainless steel metal mesh grille can be used as machine ventilation covers, or protective metal grilles, wall decoration mesh, kitchen cabinet door grilles, etc.
Please refer to the following specification.

Material	Stainless Steel 201,304 or 316, optional
Type	Rigid mesh
Wire Diameter	2.15mm
Clear Hole Size	20mm
The total thickness of the fabric	2.8mm
Opening Area	82%
Block out	18%
Privacy Rate	18%
Weight	2.5kg/Square Meter
Finish	Stainless Steel Mill Finish
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut, Diamond Cut
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, Vacuum titanium plated, Painted, PVDF Coated,
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
