METART-WW41-Wine Bar Decorative Metal Grilles

Specification

Pattern #: METART-WW41D2H19

Material: Stainless Steel 304 / Stainless Steel 316

Type: Rigid Mesh

Opening Area: 74%

Weight: Approx 3.4g/Square Meter

Finish: Mill Finish

Screen Size: Customized.

GET A QUOTE

Introduction

This is the mill finish of METART-WW41D2H19. Other colors or surface treatment is accepted.

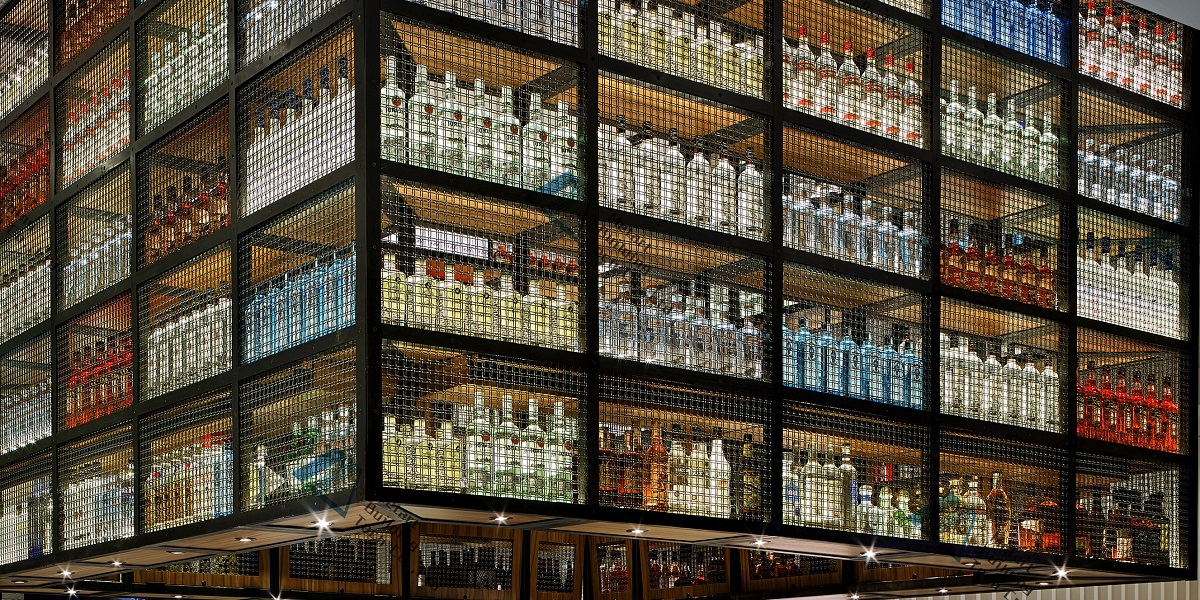

This pattern can be used as bottle shop cabinet decorative wire mesh grilles, balustrade infill mesh, fencing panels, room divider screen mesh, partition screen wire mesh and wall cladding mesh, etc.

Please refer to the following specifications.

Material

Stainless Steel 304 or 316, optional

Type

Rigid mesh

Wire Diameter before flattened

2mm

Biggest Hole Size

19.3mm

Smallest Hole Size

4.8x4.8mm

Slot Hole Size

4.8x19.3mm

The total thickness of the fabric

3.3mm

Opening Area

74%

Block out

26%

Privacy Rate

26%

Weight

3.4g/Square Meter

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut.

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
