METART-WW40-Balustrade Infill Screen Mesh

Specification

Material: Stainless Steel 304 / Stainless Steel 316 / SS201

Type: Rigid Decorative Woven Wire Mesh

Opening Area: 65%

Weight: Approx 6.6g/Square Meter

Finish: Antique Copper Plated Finish ( and other optional finishes )

Maximum Width: up to 4000MM for Mill finish only

Maximum Length: up to 20 Meters for mill finish only.

GET A QUOTE

Introduction

Decorative wire mesh panels are the perfect material for architectural balustrading and railing designs, as it can be made into different designs to cater different needs of customers.

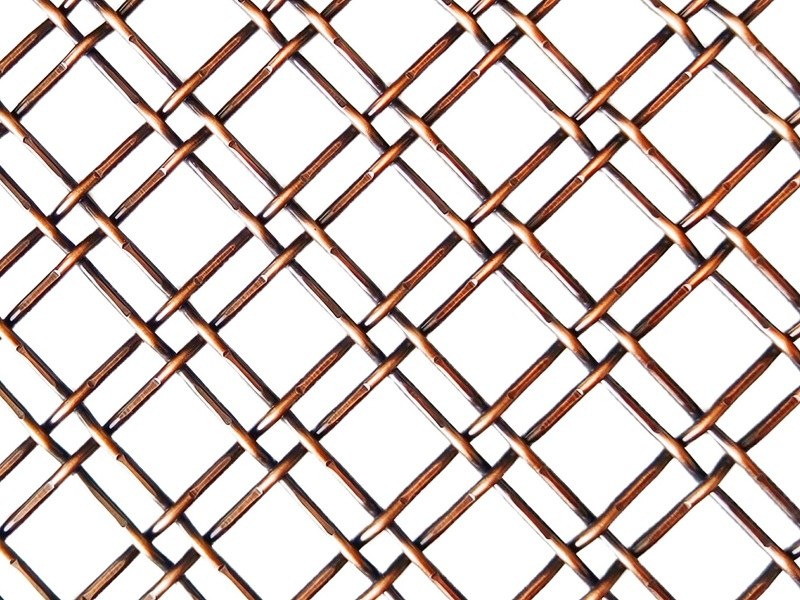

METART-WW40 decorative wire mesh is a classic crimped decorative mesh pattern that features its robustness and simplicity. This decorative wire mesh panel is made of a nominal 2.8mm stainless steel wires, forming approx 18x18mm and 5x5mm openings.

It is heavy duty and rigidity makes it a popular material as balustrade infill screen mesh. METART BUILDING TECH provides cut to size service for custom wire mesh fabrication. With the help of laser cutting machine, we can customize exotic shape for you to suit your projects.

The decorative woven wire METART-WW 40 is not limited to balustrade infill screen mesh. It can be used as room divider mesh panels, partition screen mesh, and architectural fence infills as well.

Please refer to the following specifications.

Material	Stainless Steel 304, 316, 201, optional
Type of screen	Rigid Decorative Metal Mesh
Wire Diameter	2.75mm
Biggest Hole Size	17.6mm
Smallest Hole Size	5.4x5.4mm
Slot Hole Size	5.4x17.6mm
The total thickness of the fabric	5.3mm
Opening Area	65%
Block out	35%
Privacy Rate	35%
Weight	6.6g/Square Meter
Finish	Stainless Steel Mill Finish
Optional ways of cutting	Straight Cut, Diamond Cut.
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, PVD titanium plated Regular Paited, PVDF painted.
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
