METART-WWD06-80/10 Car Park Cable Wire Mesh
Material: Stainless steel 304 or Stainless Steel 316
Rod Diameter / Rod Pitch: 3.0mm / 10.0mm
Cable Diameter / Cable Pitch: 2.0mmx3 / 80mm
Max Screen Size: 6M Width x 50M Roll.
Finishes: Mill Finish,(Antique) Brass-Plated, (Antique) Copper-Plated,
Optional Finishes: PVD Plated, PVDF Painted.
GET A QUOTECable rod architectural wire mesh pattern METART-WWD06, also known as 8010 or 1080 cable wire mesh, is a flexible and cost-effective solution for building facade mesh.

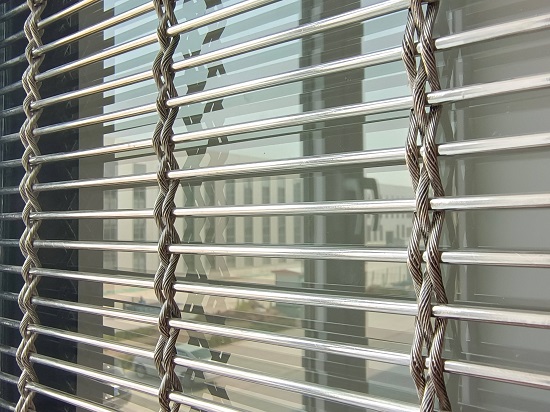

This product is horizontally made of 3mm stainless steel wire rods at a 10mm center-to-center distance. Vertically, it features groups of 2mm stainless steel cables, with each group including 3 strands of stainless steel cables at 80mm centers.
Compared to WWD05, METART-WWD06 has a lower density of rods which makes it less heavy-duty and with greater visibility.

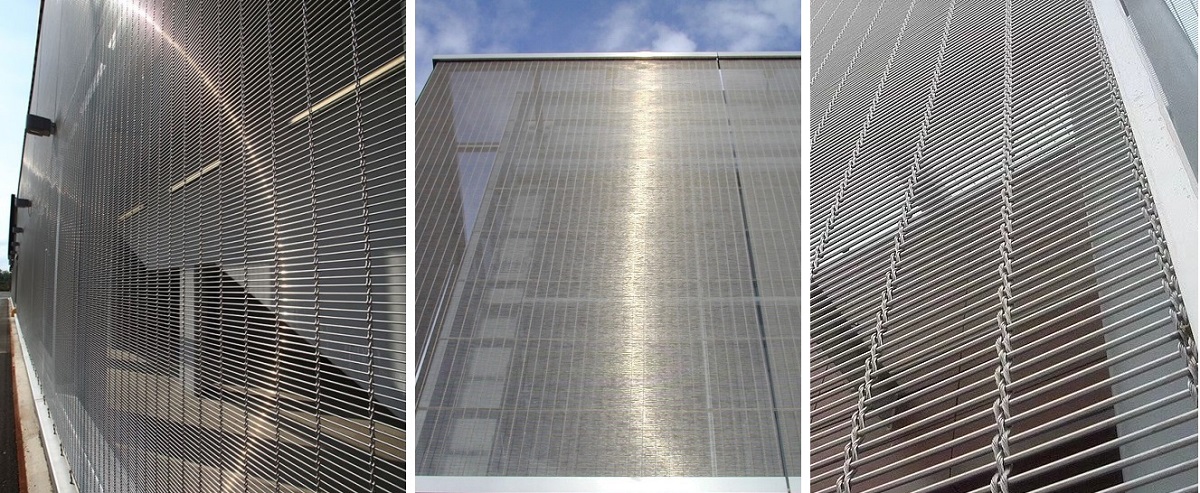

However, it is still strong enough to suit commercial building shadings and enclosures, such as an office building solar control architectural wire mesh, car park architectural metal mesh facades, business park fencing infill mesh panels, shop front glass security screening, and sun shading screens, shopping center building screening mesh, staircase protective partition screen mesh infill, and balustrade infill cable mesh. It is also commonly used in bridge drop protection cable mesh projects.
For outdoor projects, it is always recommended to choose marine grade 316 stainless steel, as it has superior corrosion resistance properties and requires less maintenance.
The METART-WWD06 creative cable rod wire mesh pattern is an ideal solution for building facades, offering both practical and aesthetic benefits.
In addition, our architectural cable wire mesh pattern is highly customizable to suit different project requirements. It can be easily cut and shaped to fit any building facade or structure. The pattern's flexibility allows it to create unique and visually stunning designs.
Maintenance for the METART-WWD06 cable rod architectural decorative wire mesh pattern is relatively simple. Regular cleaning using a soft brush or sponge and a mild detergent is recommended. For outdoor applications, it is important to choose marine-grade stainless steel 316 wires and cables to ensure a great exterior performance.
Please refer to the following specification table.
|
Raw Material |
Stainless steel 304,316, 201, Brass, and other alloys |
|
Wire Mesh Type |
Single Way Flexible Architectural Cable Mesh |
|
Width of the Screen |
Within 6000MM ( 19.69 feet) |
|
Length of the Screen |
Within 50 Meters ( 164 feet) |
|
Wire Rod Diameter |
3mm |
|
Wire Rod Centers |
10mm |
|
Cable Diameter and strands |
2mm x 3 strands |
|
Cable Centers |
80mm |
|
Overall Thickness of the Screen |
7mm |
|
Opening Rate |
64.8% |
|
Privacy Rate |
35.2% |
|
Approx Square Meter Weight |
6.6KG/㎡ |
|
Finishes |
Mill Finish ( Natural Stainless Steel Finish) |
