Architectural Metal Mesh-WW45S-A stylish stainless steel wire mesh for architecture and decoration

Specification

Pattern Code: METART-WW45S

Material: AISI304 (indoor), AISI 316 (out door), SS201 (interior only)

Type of Mesh: Rigid Architectural Wire Mesh

Opening Rate: 36%

Weight: Approx 4.7KG/ square meter

Finish: Antique Copper / Brass / Bronze Plated Finish (other finishes available)

Screen Sizes: Customizable, within 4 meter by 5 meter

GET A QUOTE

Introduction

METART BUILDING TECH - PROFESSIONAL ARCHITECTURAL METAL MESH SOLUTION PROVIDER IN CHINA.



METART is an experienced architectural metal mesh manufacturer with innovative weaving techniques to produce intricate wire mesh patterns for both industrial and architectural applications.

Working with a group of excellent domestic and overseas designers and architects, METART holds hundreds of architectural wire mesh toolings in stock to provide customers with a regular range of architectural metal mesh patterns and designs.

Based on these current decorative mesh patterns, our engineers can also create thousands of variants by tweaking the wire diameter and opening sizes, catering to the different requirements.

We're experts in every step of supplying decorative mesh production, from designing, sampling and production to color plating and delivery of the final products.



HOW IS "METART-WW45S" ARCHITECTURAL METAL MESH MADE?



This decor mesh pattern is not made of two different types of metal strips. The bigger one is 5mm wide and 0.6mm thick, with an actual measurement of around 5.9x0.55mm. The smaller wire strips are 2.5mm wide x 1mm thick. The bigger wire strips are spaced 25mm apart, while the smaller strips have centers of 12.5mm. At this spacing, these two different flat wires are woven up intricately to form a beautiful design and a tight structure with approximately 36% opening area and ventilation rate. Meantime, it also creates a perfect rate for privacy if used for screening and partition infills.

Specification Overview.

Pattern Code

METART-WW45S

Optional Raw Materials

SS304, SS316, SS201

Type of mesh

Rigid Architectural Mesh

Metal Strips

5x0.6mm

2.5x1mm

Opening:

20x20MM

10x10MM

Oversall thickness of the fabric

2.5mm

Opening Area

36%

Privacy Rate

54%

Weight

4.7KG/Square Meter

Optional ways of cutting

Straight Cut, Diamond Cut.

Optional Finishes

Mill Finish ( Original stainless steel finish,
Antique Copper/Bronze/Brass Plated Finish

PVD titanium plated.



BESPOKE SPECIFICATIONS AND FINISHES



METART BUILDING TECH is a factory of architectural wire mesh. If you want this design but with a different wire size and openings for special construction projects, we accept bespoke productions. We can customize the raw materials and tooling to meet your demands at a very reasonable cost.

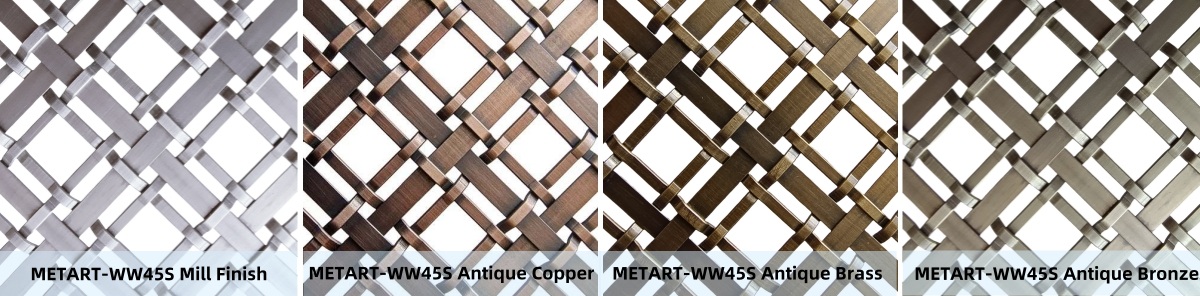

After the wire mesh is well produced, we can deliver them to a cooperative plating factory to get them color-plated, please see the following three of our popular electro-plated colors.

Besides the above mentioned antique finishes, we can also supply bright copper plated finish and bright brass plated finishes as well as a series of PVD plated finishes, including gold color, champagne gold, rose gold, black, grey, etc.



HOW TO CHOOSE THE PROPER SHAPE OF THIS DESIGNER WIRE MESH DESIGN?



There are two different available shapes for this architectural wire design. The simplest and budget friendly one is the straight cut sheet, which is the initial shape of this decorative wire pattern after it is made. Please refer to the right side of the following picture.

But here on this product page, most of the samples we are showcasing are cut diagonally to a diamond shape, in order to get a different look with a stronger visual impact. Please refer to the left side fo the following picture.

Diamond shape is favoured by a lot of buyers even if with a higher cost. As this diamond shaped hole pattern was cut out from a standard straight pattern decorative wire mesh panel.



WHERE CAN I USE THIS DECOR MESH PATTERN?



This decor mesh is designed with a lightweight feature but with a tight structure. This property offers this decor mesh a variety of applications in different areas. Here we make a list of a few applications for your reference.



► Room Partition Infill Mesh

This architectural decor wire mesh panel made of metal strips is a perfect infill material for interior partitions that is both ornamental and practical.

It is pretty rigid after it is well-installed and welded into a frame system. Either a straight-cut pattern or diamond-shaped screen can offer decorative elements and privacy protection to your office, conference room, shops, store, and many other commercial spaces.



► Cabinetry and joinery accessories.

WW-45S is a lightweight flat wire architectural metal screen mesh, The total thickness of the mesh is only 2.5mm, which is quite perfect for cabinet door inserts.



► Architectural Wire Mesh Ceilings

This wire mesh is a lightweight decorative material but rigid enough to be ceiling panels. It can be welded onto angle frames and used in commercial spaces to add special spice to the building.



►Custom Wire Mesh Ceiling Light Shades for Hotels, Commercial Areas or Home DIY.

WW-45S is a rigid architectural wire mesh but it can be bent naturally to a big circular, after the two ends are welded, it can be easily made into a classy decorative metal mesh ceiling light shade.



CUSTOM WIRE MESH FABRICATIONS



Our factory can provide custom wire mesh fabrication services including the following two major fabrications.



► Precision Cutting by laser machine.

This service is always demanded by customers who have very stringent requirements for the architectural mesh sheet dimensions. Another big advantage of laser cutting service is to create exotic shapes based on customers' CAD drawings for some customized projects.



► Bespoke Framing Services.

METART provides various framing services like angle framing and folding stainless steel plates to fit specific frame sizes.

Before folding, the plates are pre-grooved to create sharp angles, resulting in beautiful frames that are suitable for interior decoration.

Having the decorative wire mesh framed in our factory is cost-effective for customers and solves color plating concerns after welding and fabrication.

The frames can be customized to curved shapes creating special interior features based on customers' needs.



HOW CAN I PURCHASE THIS DECOR WIRE MESH?



1. Carefully review the specification table to ensure this design meets your needs.

2. Let us know the required grade of stainless steel based on your intended use.

3. Confirm the shape you prefer: diamond or regular.

4. Provide the dimensions of the metal mesh sheets.

5. Select the desired finish and inform us of your choice.

6. Specify the quantity you need. If you’re unsure about the exact amount, please provide a rough estimate, either in pieces or square meters.

7. Request a free quotation by Email or phone call.

   Email: hello@metartmesh.com

   Australian Wide: +61 435 598 786

   Internation Call: +86 158 0318 7372

8. Ask for a free sample.



HOW TO GET A SELECTION OF DECORATIVE WIRE MESH SAMPLES FOR MARKETING PURPOSE?



We offer a Designer Handbook that contains 52 types of decorative metal mesh samples with various finishes.

This handbook is user-friendly and does not contain any of our company information, making it perfect for you to show these designs to your customers.

Please provide your address so that our sales team can give you a quotation for this handbook as well as the shipping cost by express.
