Specification

Material: Stainless Steel 304 / Stainless Steel 316

Type: Rigid Mesh

Opening Area: 62.8%

Weight: Approx 5.6kg/Square Meter

Finish: Mill Finish

Screen Width: Customized.

Screen Length: Customized.

GET A QUOTE

Introduction

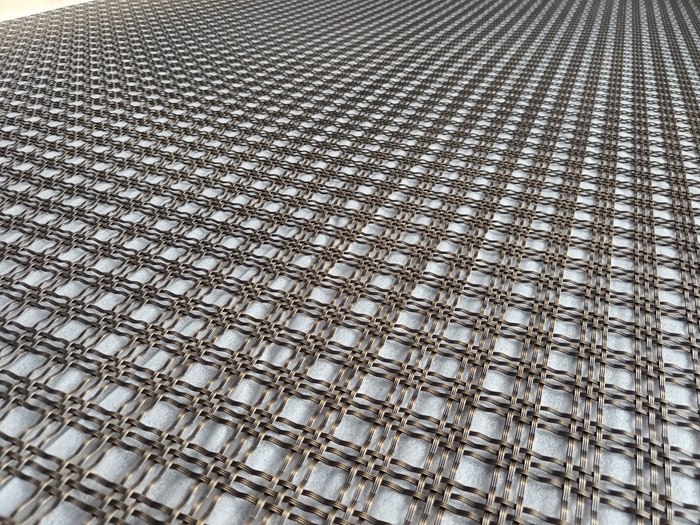

This is the diamond cut woven wire pattern METART WW44, this diamond cut shape offers a better look but higher cost.

Even though, many customers still prefer it in a diamond cut way.

This pattern can be used as partition screen infill panels, living room divider screen mesh, commercial building wall cladding metal mesh screens, laminated glass inserts, etc.

Please refer to the following specifications.

Material	Stainless Steel 304 or 316, optional
Type	Rigid mesh
Flattened Wire Strip	2.9x1mm
Biggest Hole Size	15.5x15.5mm
Smallest Hole Size	3.3x3.3mm
Slot Hole Size	3.3x15.5mm
The total thickness of the fabric	2.2mm
Opening Area	62.8%
Block out	37.2%
Privacy Rate	37.2%
Weight	5.6kg/Square Meter
Finish	Mill Finish
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut, Diamond Cut.
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted.
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
