Specification

Material: Stainless Steel 304 or 316 + Real Bronze Wire

Type: Rigid Mesh

Opening Area: 10%

Weight: Approx 16.6 kg/Square Meter

Finish: Mill Finish (original stainless steel and bronze color)

Screen Width: Customized.

Screen Length: Customized.

GET A QUOTE

Introduction

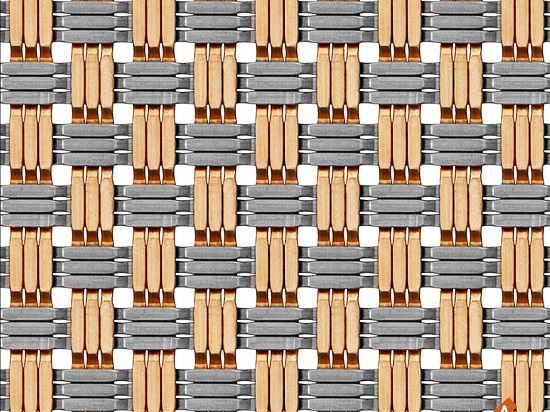

METART-WW34MSSRBZ is the medium-sized version of the woven wire pattern series WW34.

Made of a hybrid of stainless steel wires and real bronze wires in different directions, this decorative wire mesh is just another color variant similar to its brass hybrid woven pattern WW34MSSRB.

This décor mesh is always used as decorative wall cladding mesh, fancy restaurant space partition metal screen infill mesh, decorative balustrade infill mesh, balcony creative railing mesh, etc.

Please refer to the following specifications.

Material	Stainless Steel 304 or 316 + Real Bronze Wires
Type	Rigid mesh
Single Wire Strip	2.7x1.4mm
Strip Group Width (3 wires)	9.1mm
Clear Hole Size	4x4mm
The total thickness of the fabric	2.8mm
Opening Area	10%
Block out	10%
Privacy Rate	90%
Weight	16.6kg/Square Meter
Finish	Mill Finish（Original Stainless Steel and bronze color）
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated
Custom specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
