Specification

Material: Stainless Steel 304 or SS316 Wires + Real Brass Wires

Type: Rigid Wire Mesh

Opening Area: 10%

Weight: Approx 16.3kg/Square Meter

Finish: Mill Finish (original stainless steel + brass color)

Screen Width: Customized.

Screen Length: Customized.

GET A QUOTE

Introduction

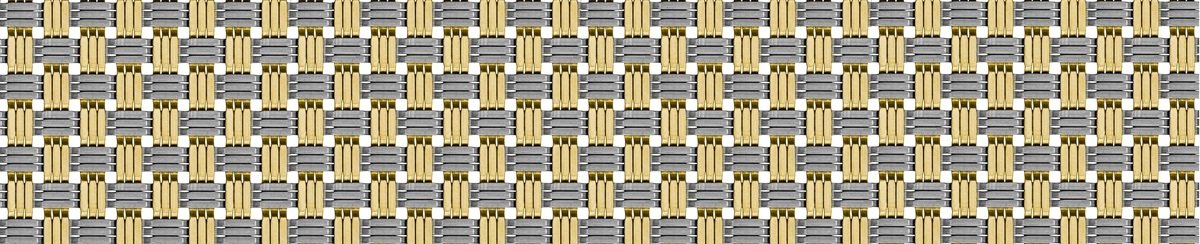

METART-WW34MSSRB is the medium-sized version of the woven wire pattern series WW34.

Made of a hybrid of stainless steel wires and real brass wires in different directions, this architectural woven wire pattern has a stunning feature that is suitable to be the cladding material or partition screen infills for the decoration or furnishing of those high-end commercial sites or spaces.

Please refer to the following specifications.

Material	Stainless Steel 304 or 316 + Real Brass Wires
Type	Rigid mesh
Single Wire Strip	2.7x1.4mm
Strip Group Width (3 wires)	9.1mm
Clear Hole Size	4x4mm
The total thickness of the fabric	2.8mm
Opening Area	10%
Block out	10%
Privacy Rate	90%
Weight	16.3kg/Square Meter
Finish	Mill Finish
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated
Custom specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
