METART-WW05-31204-Decorative Mesh
Material: SS304 / SS316 / SS201
Type: Rigid Mesh
Opening Area: 33%
Weight: Approx 7.6kg/Square Meter
Finish: Mill Finish
Screen Width: Customized.
Screen Length: Customized.

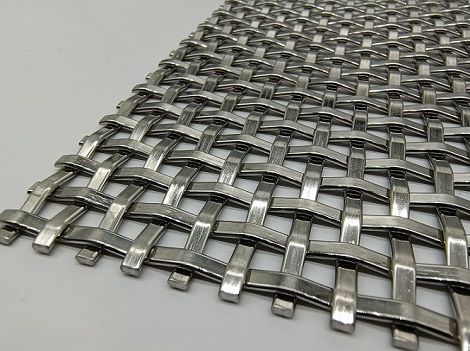

GET A QUOTEMETART-WW05-31204 is also a regular pain-woven flat wire pattern.
#31204 means 3.0mm flat wire strip, 1.2 mm wire thickness, and 4mm clear hole size.
These exhibition photos are mill-finished wire mesh with no coating.
METART can offer extra color plating services including powder coating, painting, PVD plating, etc based on your requirement for this pattern.
This wire mesh material is a nice choice for your kitchen cabinet door mesh panel or wine cabinet door infill mesh.
Also, it can be nice material for laminated glass mesh for either decoration or security purposes.
Please refer to the following specifications.
|
Material |
Stainless Steel 304 or 316, optional |
|
Type |
Rigid Mesh |
|
Flat Wire Strip: |
3x1.2mm |
|
Clear Hole Size |
4mm |
|
The total thickness of the fabric |
2.5mm |
|
Opening Area |
33% |
|
Block out |
67% |
|
Privacy Rate |
67% |
|
Weight |
7.6kg/Square Meter |
|
Finish |
Stainless steel mill finish. |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut, Diamond Cut |
|
All optional Finish |
Mill Finish ( Original stainless steel bright finish）, |
|
Customized specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
Please refer to the following table for all the specifications of METART WW05
|
Item # |
Flat Strip |
Clear Hole Dia. |
Opening Area |
Privacy Rate |
Weight |
Overall Thickness |
|
Metart 05-61585 |
6x1.5mm |
8.5x8.5mm |
34% |
66% |
9.5KG / Square Meter |
3.4mm |
|
Metart 05-41022 |
4x1mm |
2.2x2.2mm |
11% |
89% |
9.2KG / Square Meter |
3.2mm |
|
Metart 05-31507 |
3x1.5mm |
7x7mm |
49% |
51% |
7.0 KG / Square Meter |
3.0mm |
|
Metart 05-31005 |
3x1.0mm |
5x5mm |
39% |
61% |
5.8 KG / Square Meter |
2.0mm |
|
Metart 05-31204 |
3x1.2mm |
4x4mm |
33% |
67% |
7.6KG / Square Meter |
2.5mm |
|
Metart 05-31205 |
3x1.2mm |
5x5mm |
39% |
61% |
7.0 KG / Square Meter |
2.4mm |
|
Metart 05-31207 |
3x1.2mm |
7x7mm |
49% |
51% |
5.6 KG / Square Meter |
2.4mm |
|
Metart 05-31210 |
3x1.2mm |
10x10mm |
59% |
41% |
4.3 KG / Square Meter |
2.4mm |
|
Metart 05-31510 |
3x1.5mm |
10x10mm |
59% |
41% |
5.4 KG / Square Meter |
3.0mm |
|
Metart 05-25103 |
2.5x1.0mm |
3x3mm |
29.7% |
70.3% |
7.1 KG / Square Meter |
2.0mm |
|
Metart 05-22134 |
2.2x1.0mm |
3.4x3.4mm |
36.8% |
63.2% |
6.1 KG / Square Meter |
2.0mm |
|
Metart 05-22834 |
2.2x0.8mm |
3.4x3.4mm |
36.8% |
63.2% |
4.9 KG / Square Meter |
1.6mm |
|
Metart 05-22084 |
2.2x0.8mm |
4x4mm |
37% |
63% |
4.0kg / Square Meter |
1.6mmm |
|
Metart 05-18186 |
1.8x1.8mm |
6.2x6.2mm |
60% |
40% |
6.4KG / Square Meter |
3.6mm |
