Decor Wire Mesh for Partition Screens


Pattern Number: METART-WW18-9355

Material: SS201, SS304, SS316, True Brass, Copper & alloy wires.

Type: Rigid Decor Wire Mesh

Opening Rate: 46%

Weight: Approx 7.2kg/Square Meter

Sheet Width: Within 3000MM ( 9.85 Feet)

Sheet Length: Within 4000MM (13.1 Feet)



Affordable and Versatile Rigid Decorative Woven Wire Mesh


METART-WW18-9355 is an innovative and versatile architectural decorative wire mesh that combines style, fashion, affordability, and durability.

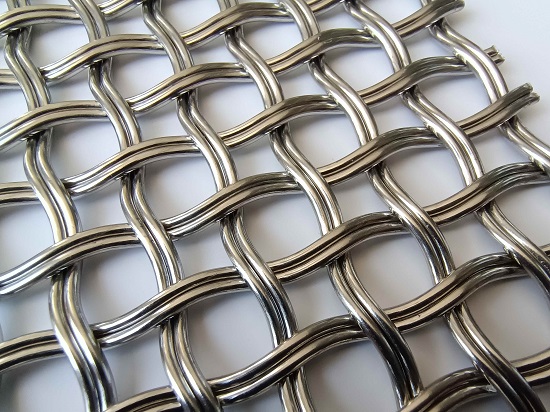

This decor wire mesh is a variant of its heavy-duty predecessor METART-WW18SS, offering a more cost-effective solution without compromising its strength and rigidity. With its meticulously crafted design, it features curled woven double wires with larger roundish holes of approximately 9.3mm and smaller squarish holes of 5.5mm, creating a visually captivating pattern that suits various architectural applications.


Durable Construction for Enhanced Security

Crafted using double pre-curled wire strands, METART-WW18-9355 ensures exceptional durability and security. Each strand is formed by two 1.8mm wires, resulting in a combined thickness of 3.6mm. This robust construction guarantees strength and toughness, making it suitable for either security purposes or decorative installations. The mesh's unique hole configuration offers a perfect blend of openness and privacy, striking a balance that enhances both aesthetics and functionality.

Specification Table


SS201, SS304, Marine Grade 316, Copper, Brass


Rigid Architectural Mesh

Single Wire Diameter


Bigger Hole Diameter


Smaller Hole Diameter


The total thickness of the fabric


Opening Area


Block out


Privacy Rate



7.2kg/Square Meter


Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finishes

Mill Finish, Antique Bronze Finish, Antique Copper Finish, Antique brass finish, PVD Titanium Plated.

Custom specifications and Mini orders accepted.


All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers.

The actual specification might have a tiny bit of tolerance according to the fabrication


Versatile Material Options for Personalized Designs

METART-WW18-9355 decorative wire mesh offers a range of material options, including SS201, SS304, Marine Grade 316, Copper, and Brass. This versatility allows architects and designers to choose the ideal material based on their project requirements and design preferences. Whether you prioritize corrosion resistance, elegance, or unique aesthetic appeal, these material choices offer flexibility and customization possibilities.


►SS201 - Cheapest Stainless Steel Decor Mesh Material

Nickel (Ni): 3.5-5.5%

Chromium (Cr): 16-18%

Carbon (C): 0.15% maximum
Manganese (Mn): 5.5-7.5%
Silicon (Si): 1.00% maximum
Nitrogen (N): 0.25% maximum
Phosphorus (P): 0.06% maximum
Sulfur (S): 0.03% maximum

Stainless Steel 201 is generally considered to be the most cost-effective option compared to austenitic stainless steel materials like SS304 and SS316. One of the primary reasons for its lower cost is its limited nickel content. While SS304 and SS316 contain higher levels of nickel, which contribute to their superior corrosion resistance, Stainless Steel 201 exhibits relatively lower corrosion resistance.

The reduced nickel content in SS201 makes it less resistant to certain corrosive environments, such as those with high chloride concentrations or exposure to harsh chemicals. Therefore, it may be less suitable for applications where exceptional corrosion resistance is a critical requirement.

However, it's important to note that Stainless Steel 201 still offers reasonable corrosion resistance in many typical indoor environments and non-aggressive atmospheric conditions. It can serve well in decorative wire mesh applications where exposure to corrosive elements is minimal.

When considering Stainless Steel 201 for decorative wire mesh, it's essential to assess the specific environmental factors and determine whether the level of corrosion resistance provided by SS201 meets the project's requirements. If enhanced corrosion resistance is needed, materials like SS304 or SS316 may be more suitable options, albeit at a higher cost.


►SS304 - Our default Stainless Steel Decor Mesh Material.

•Nickel (Ni): 8.00-10.50%

•Chromium (Cr): 18.00-20.00%

•Carbon (C): 0.08% maximum
•Manganese (Mn): 2.00% maximum
•Phosphorus (P): 0.045% maximum
•Sulfur (S): 0.030% maximum
•Silicon (Si): 0.75% maximum

SS304 is commonly chosen as the default raw material for producing stainless steel decorative wire mesh due to its excellent combination of properties and widespread availability. Here are some reasons why SS304 is often the preferred choice:

Corrosion Resistance: SS304 exhibits excellent corrosion resistance, making it suitable for a wide range of indoor and outdoor applications. It resists oxidation and corrosion from most chemicals, atmospheric conditions, and typical environmental exposures.

Versatility: SS304 offers versatility in design and application. It can be easily formed, welded, and fabricated into various shapes and sizes, allowing for intricate and customized designs in decorative wire mesh applications.

Durability and Strength: SS304 is known for its high tensile strength and durability, providing structural integrity and long-lasting performance. It can withstand mechanical stresses, impacts, and wear, making it suitable for both decorative and functional purposes.

Availability and Cost: SS304 is readily available in the market, making it a convenient choice for manufacturers and suppliers of decorative wire mesh. Its popularity and widespread use contribute to competitive pricing and accessibility.

Considering these factors, SS304 has established itself as a reliable and versatile material for stainless steel decorative wire mesh. Its corrosion resistance, aesthetic appeal, durability, and availability make it a preferred choice for a wide range of architectural projects.


►SS316 - Marine Grade Decorative Woven Wire Option.

Nickel (Ni): 10.00-14.00%
Chromium (Cr): 16.00-18.00%
Molybdenum (Mo): 2.00-3.00%
Carbon (C): 0.08% maximum
Manganese (Mn): 2.00% maximum
Phosphorus (P): 0.045% maximum
Sulfur (S): 0.030% maximum
Silicon (Si): 0.75% maximum

SS316 is often referred to as "marine grade" stainless steel due to its exceptional corrosion resistance in marine environments. The higher content of chromium and nickel in SS316, compared to SS304, provides enhanced resistance to corrosion, especially in chloride-rich and saltwater conditions commonly found in marine settings.

The presence of molybdenum in SS316 further contributes to its suitability for marine applications. Molybdenum enhances the alloy's resistance to pitting and crevice corrosion, which can occur in the presence of chlorides, such as seawater.

In outdoor applications, SS316 Decor Wire Mesh exhibits excellent performance and durability. Its corrosion resistance extends beyond marine environments, making it well-suited for a wide range of outdoor applications, including exterior building and decoration.

When used in exterior building and decoration, SS316 architectural screen mesh demonstrates exceptional resistance to atmospheric corrosion, oxidation, and exposure to various weather conditions. It withstands the effects of rain, UV radiation, temperature fluctuations, and pollutants, making it highly suitable for architectural elements, façades, handrails, and other exterior features.

SS316 maintains its appearance over time, retaining its smooth, polished finish even in outdoor environments. It requires minimal maintenance and is easy to clean, allowing it to maintain its aesthetic appeal with regular care.

The combination of its corrosion resistance, strength, and aesthetic qualities makes SS316 wire mesh an excellent choice for exterior building and decoration applications. It provides long-lasting performance, ensuring that architectural structures maintain their visual appeal and structural integrity in outdoor applications.


Lightweight Design for Easy Installation

Despite its impressive strength, METART-WW18-9355 boasts a lightweight design, weighing just 7.2kg per square meter. This reduction in weight facilitates easier installation and contributes to cost savings. The 3.6mm thickness ensures structural integrity while providing a manageable weight, making it an excellent choice for various applications, including partition infill decor wire mesh.


Enhancing Aesthetics with Optional Finishes

METART-WW18-9355 is available in a range of finishes, including Mill Finish, Antique Bronze Finish, Antique Copper Finish, Antique Brass Finish, and PVD Titanium Plated Finish. These finishes not only enhance the mesh's aesthetic appeal but also offer increased resistance to wear, corrosion, and weathering. Architects and designers can select the finish that best complements their design vision, ensuring a visually captivating and long-lasting result.


Ideal for Diverse Commercial Buildings

METART-WW18-9355 is the perfect solution for a wide range of commercial buildings, including hotels, museums, studios, banks, and shopping malls. Its combination of strength, affordability, and versatility makes it suitable for both decorative and functional purposes. Architects, designers, and contractors can rely on this mesh to create visually appealing spaces while meeting the demands of various commercial environments.


Your Creativity with METART-WW18-9355

Experience the perfect synergy of elegance, durability, and affordability with METART-WW18-9355. Discover this architectural woven wire mesh's endless design possibilities for your projects. Contact us to explore the remarkable features of METART-WW18-9355 and unleash your creativity in transforming spaces with style and sophistication.
