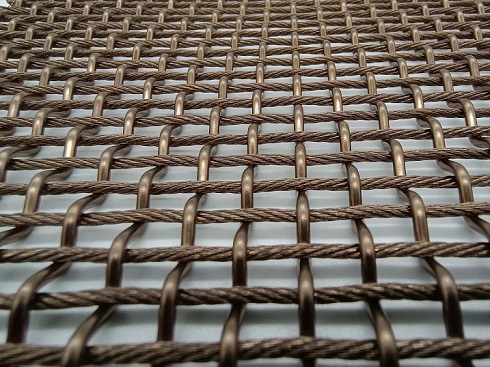

METART-WWD09-Brown Copper Plated Cable Mesh Drapery
Material: Brown Copper Plated Stainless Steel 304 or 316
Crimped Wire Diameter / Wire Pitch: 2.0mm/8.0mm
Rope Diameter / Rope Pitch: 2.0mm/6.0mm
Max Screen Size: 6 meters Width x 50 meters Roll
Finishes: Mill Finish,(Antique) Brass-Plated, (Antique) Copper-Plated,
Optional Finishes: Titanium PVD Plated, PVDF Painted.
GET A QUOTEThe METART-WWD09 architectural cable wire screen pattern is basically a variant of the WWD07, with similar specifications and configurations that make it suitable for various applications.
This cable wire screen pattern features a crimped stainless steel wire rod with a diameter of 2mm and a 2mm cable that is slightly smaller than the 2.5mm cable diameter of WWD07. With a cable pitch of 8mm, the METART-WWD09 is also a nice choice for various design needs.
But the biggest difference is the shape of the wire rod.METART-WWD09 adopts crimped stainless steel wire instead of the usually straightened wire rod which offers an opposite visual experience with crimped rods and relatively straight cables.
The METART-WWD09 rope wire screen pattern offers a range of finishes to choose from, depending on your specific requirements and preferences. In addition to the brown copper-plated version and the original stainless steel finish, we also provide customization options for the wire rod diameter, cable diameter, centers, and other specifications. This ensures that the pattern meets the exact needs of each project.
Please refer to the following specification table.
|
Raw Material |
Stainless steel 304,316, 201, and other alloys |
|
Wire Mesh Type |
Single Way Flexible Architectural Cable Mesh |
|
Width of the Screen |
Within 6000MM ( 19.69 feet) |
|
Length of the Screen |
Within 50 Meters ( 164 feet) |
|
Wire Rod Diameter |
2mm |
|
Wire Rod Centers |
8mm |
|
Cable Diameter and strands |
2mm |
|
Cable Centers |
6mm |
|
Overall Thickness of the Screen |
5mm |
|
Opening Rate |
50% |
|
Privacy Rate |
50% |
|
Approx Square Meter Weight |
6.6KG/㎡ |
|
Finishes |
Mill Finish ( Natural Stainless Steel Finish) |
