METART-WWD07-Stainless Steel Cable Railing Mesh
Material: Stainless steel 304 or Stainless Steel 316
Rod Diameter / Rod Pitch: 2.0mm/8.0mm
Cable Diameter / Cable Pitch: 2.5mm / 6.0mm
Max Screen Size: 6M width x 50M Roll
Finishes: Mill Finish, (Antique) Brass-Plated, (Antique) Copper-Plated,
Optional Finieshes: Titanium Plated, PVDF Painted.

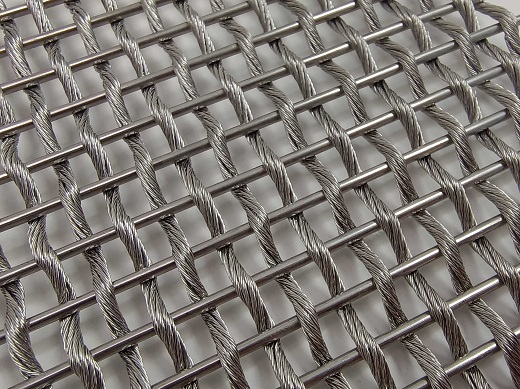

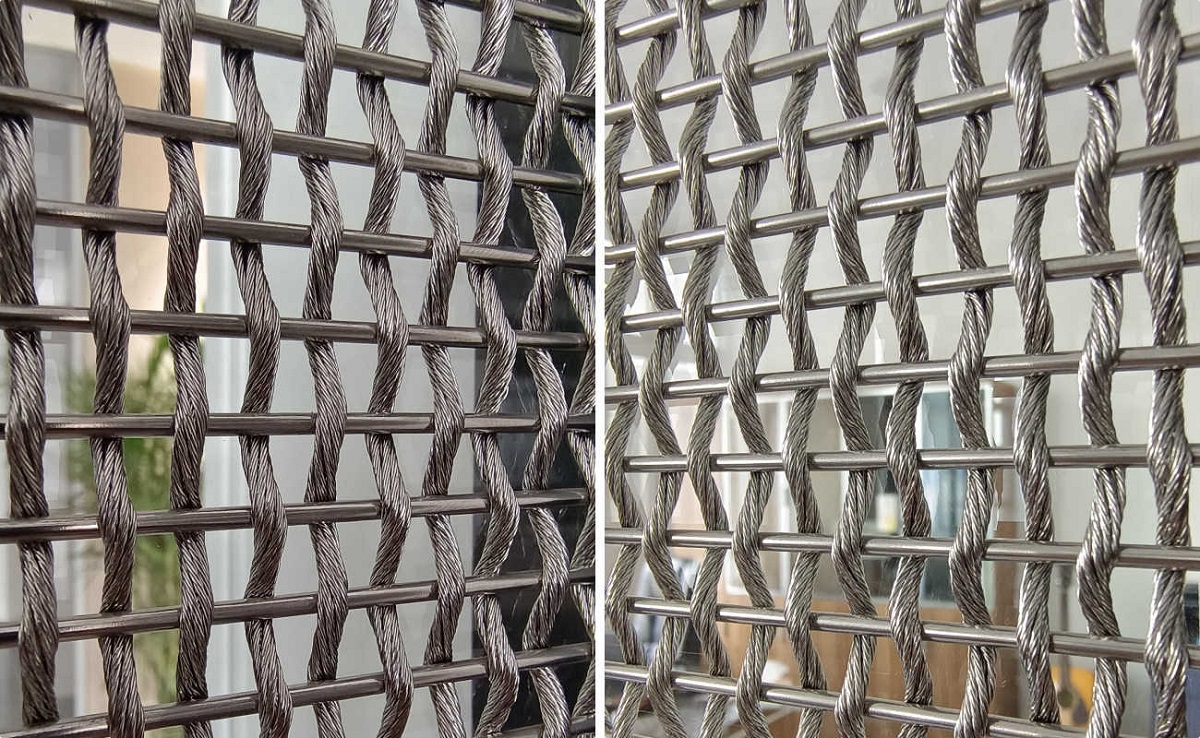

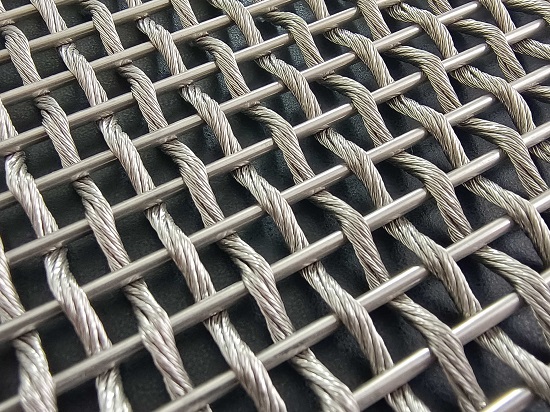

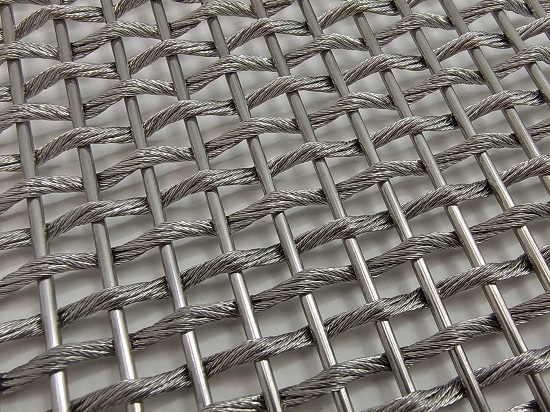

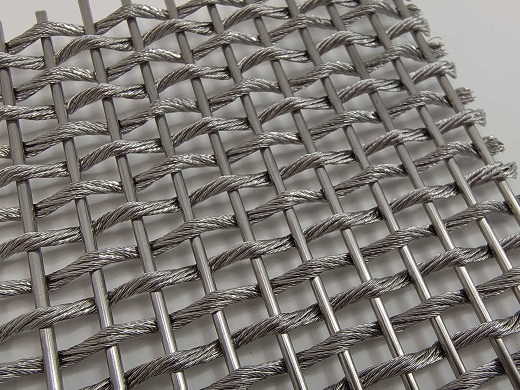

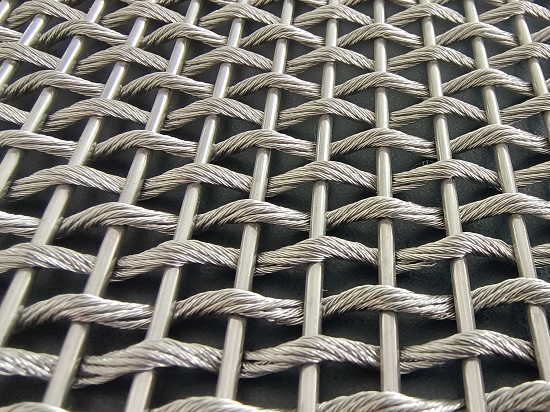

GET A QUOTEMETART-WWD07 is a unique type of architectural cable wire mesh that is made of 2mm stainless steel wire rods and a single strand of 2.5mm cables. This composition provides several key benefits that make it a versatile and durable option for a range of applications.
Firstly, the high density of stainless steel cable in the vertical direction provides excellent tensile strength, making the mesh suitable for applications where it will be exposed to high stress or tension.
Secondly, the small rectangular holes in the mesh offer a better visual experience compared to larger or irregularly shaped holes found in other types of mesh. The more crimps created by the stainless steel cables provide a 3D visual impact and increase the overall quality of the mesh, making it suitable for applications where aesthetics are important.
Thirdly, the moderate opening rate of 43.8% strikes a balance between privacy and ventilation, making it suitable for both interior partition privacy screens and exterior shading screens.
The METART-WWD07 architectural cable wire mesh is a versatile option that can be used for a range of applications where strength, aesthetics, and functionality are important. Its unique composition and specifications make it a durable and reliable choice that is sure to meet your needs.
Please refer to the following specification table.
Raw Material |
Stainless steel 304,316, 201, and other alloys |
Wire Mesh Type |
Single Way Flexible Architectural Cable Mesh |
Width of the Screen |
Within 6000MM ( 19.69 feet) |
Length of the Screen |
Within 50 Meters ( 164 feet) |
Wire Rod Diameter |
2mm |
Wire Rod Centers |
8mm |
Cable Diameter and strands |
2.5mm |
Cable Centers |
6mm |
Overall Thickness of the Screen |
5mm |
Opening Rate |
43.75% |
Privacy Rate |
56.25% |
Approx Square Meter Weight |
7.2KG/㎡ |
Finishes |
Mill Finish ( Natural Stainless Steel Finish) |
Framed partition wire mesh screen, the copper-finished one is a rendered image, not a real photo.
