METART-WW46-Creative Facade Screen Mesh

Specification

Material: Stainless Steel 304 / Stainless Steel 316

Type: Rigid Mesh

Opening Area: 82.5%

Weight: Approx 4.5kg/Square Meter

Finish: Mill Finish

Screen Width: Customized.

Screen Length: Customized.

GET A QUOTE

Introduction

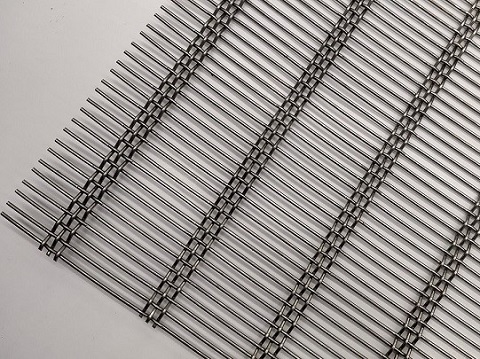

METART WW46 adopts 1.9mm diameter stainless steel wires in both warp and weft directions. Using 3 wires as a group for its warp, this pattern looks similar to our woven wire cable drapery from far away. It can be used as fencing mesh, building façade screen mesh and wall cladding mesh both interior and exterior.
Please refer to the following specifications.

Material	Stainless Steel 304 or 316, optional
Type	Rigid mesh
Wire Diameter	1.9mm
Big Slot Hole Size	4.7x 51mm
Small Slot Hole Size	4.7 x 2.8mm
The total thickness of the fabric	4.5mm
Opening Area	82.5%
Block out	17.5%
Privacy Rate	17.5%
Weight	4.5kg/Square Meter
Finish	Stainless Steel Mill Finish
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut Only
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
