METART-WWD04-Architectural Cable Rod Wire Mesh

Specification

Material: Stainless Steel 304 or Stainless Steel 316

Type: One way flexible cable mesh

Rod Diameter / Rod Pitch: 2.0mm / 4.5mm

Rope Diameter / Rope Pitch: 1mmx4 / 36mm

Max Screen Size: 6M width x 50M Rolls

Finish: Mill Finish,(Antique) Brass-Plated, (Antique) Copper-Plated,

Optional Finish: PVD Plated, PVDF Painted.

GET A QUOTE

Introduction

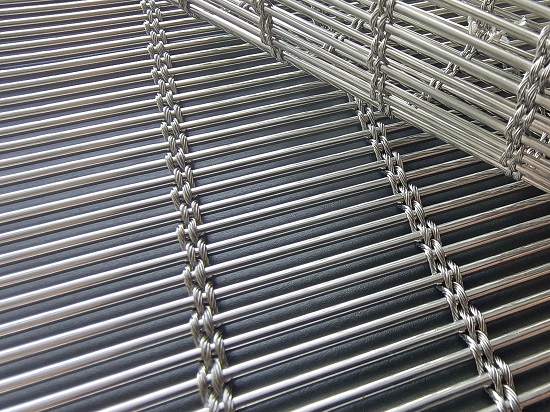

METART's WWD04 stainless steel cable wire mesh pattern is a versatile and popular design that offers both strength and flexibility. This mesh pattern is composed of 2mm diameter wire rods as weft wires and 4 strands of 1.0mm diameter cables as a weft wire group, making it a suitable option for a wide range of architectural projects.

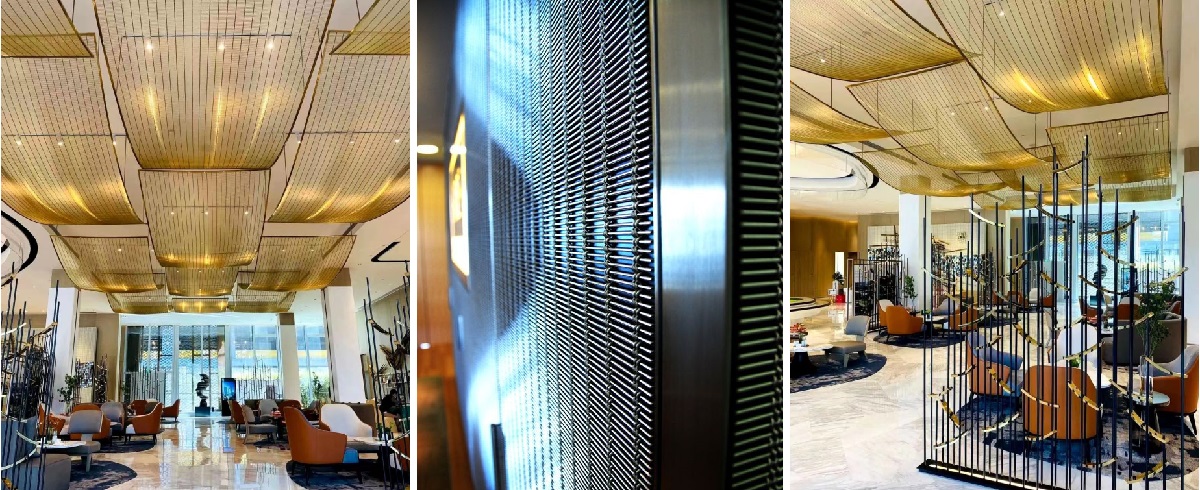

It's important to note that while the WWD-04 mesh pattern is stronger and more rigid than WWD-03, it is not specifically designed for outdoor use. However, it can be used for exterior shading screens in shopfronts, commercial building solar control screens, interior partition screens, and other interior decorations like wall cladding, or stylish ceiling screens.

According to its design, this flexible mesh pattern is generally used as commercial building wall covering metal mesh, restaurant screening metal mesh, shop fitting fancy screening, hotel partition screening infill metal fabrics, complex shaped decorative metal screens, exotic shape metal ceiling screens, office indoor sun protections metal screens, shopping center featured metal screens, conference center sun control decorative screens, etc.

As this architectural mesh pattern is vertically made of stainless steel cables, it is then vertically flexible and can be formed in different complex shapes to meet your design requirements. And the wire rods make sure the whole screen is one-way super rigid.

We accept customized specifications including rod diameter, rod pitch, cable diameter, cable group pitch, and the number of cable strands.

As to the colors, most of the customers prefer to use it in mill finish, which is the original stainless steel mesh bright finish.

According to different use environments, we can have it brass plated, copper plated, and even process it to an antique style after plating.

Meantime, we can also do PVDF coated in different colors or PVD vacuum titanium-plated gold, rose gold, gun black, etc.

Please refer to the following specification table.



Raw Material

Stainless steel 304,316, 201, Brass and other alloy

Wire Mesh Type

Single Way Flexible Architectural Cable Mesh

Width of the Screen

Within 6000MM ( 19.69 feet)

Length of the Screen

Within 50 Meters ( 164 feet)

Wire Rod Diameter

2mm

Wire Rod Centers

4.5mm

Cable Diameter and strands

1mm x 4 strands

Cable Centers

36mm

Overall Thickness of the Screen

3.65

Opening Rate

39.5%

Privacy Rate

60.5%

Approx Square Meter Weight

6.3KG/

Finishes

Mill Finish ( Natural Stainless Steel Finish)
Gold PVD Plated, Black PVD Plated
Copper Plated, Brass Plated
Antique Copper Plated, Antique Brass Plated

Application
