METART-WW39-3585 Architectural Glass Insert Mesh made of decorative crimped wires

Specification

Material: Stainless Steel 304 / Stainless Steel 316 / SS201

Type: Rigid Architectural Mesh

Opening Area: 62%

Weight: Approx 3.8 kg/Square Meter

Finish: Antique Brass Plated Finish

Screen Width: Maximum 3000MM (10 feet)

Screen Length: Maximum 4000MM ( 13 feet)

GET A QUOTE

Introduction

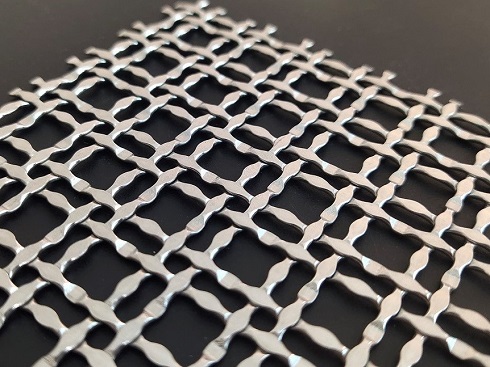

METAR WW39-3585 is made of deep-crimped, flattened stainless steel wire. As it is very thin and light-weighted, this woven wire mesh is suitable for laminated glass wire mesh and architectural screens.
Please refer to the following specifications:

Material	Stainless Steel 304,316, or SS201 optional
Type	Rigid mesh
Wire Diameter Before Flattened	1.55mm
Biggest Hole Size	8.5x8.5mm
Smallest Hole Size	3.5x3.5mm
Slot Hole Size	3.5x8.5mm
The total thickness of the fabric	1.4mm
Opening Area	62%
Block out	38%
Privacy Rate	38%
Weight	3.8 kg/Square Meter
Finish	Stainless Steel Mill Finish
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut, Diamond Cut.
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
