Specification

Material: SS201/ SS304 / SS316 and other alloy

Type: Rigid Mesh

Opening Area: 0%

Weight: Approx 10.7kg/ Square Meter

Finish: Antique Copper Plated

Screen Size: Customized.

GET A QUOTE

Introduction

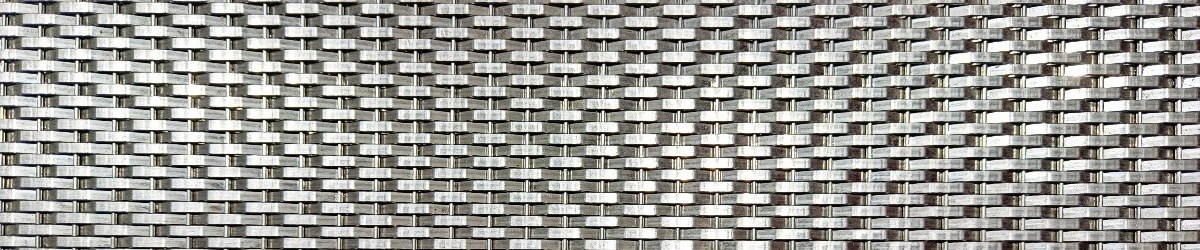

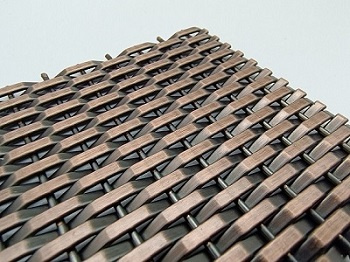

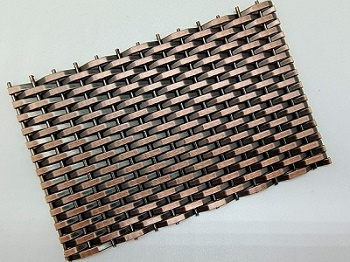

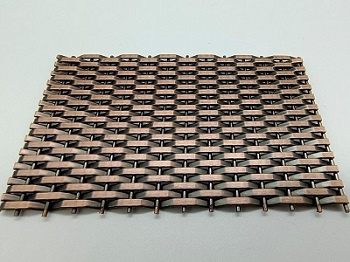

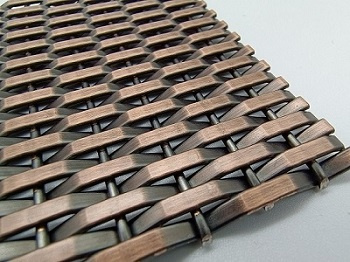

As a popular elevator architectural mesh, METART-WW03B is the opposite side of our architectural wire mesh pattern, METART-WW03.

With the exact same specifications as METART-WW03, WW03B is a combination of 3x1.2mm stainless steel wire strips and 1.5mm straightened stainless steel wire rods.

After a super tight weaving process, this solid metal screen has no opening at all in both directions. There is still ventilation in between the crimped wires and rods, but it is almost 100% opaque.

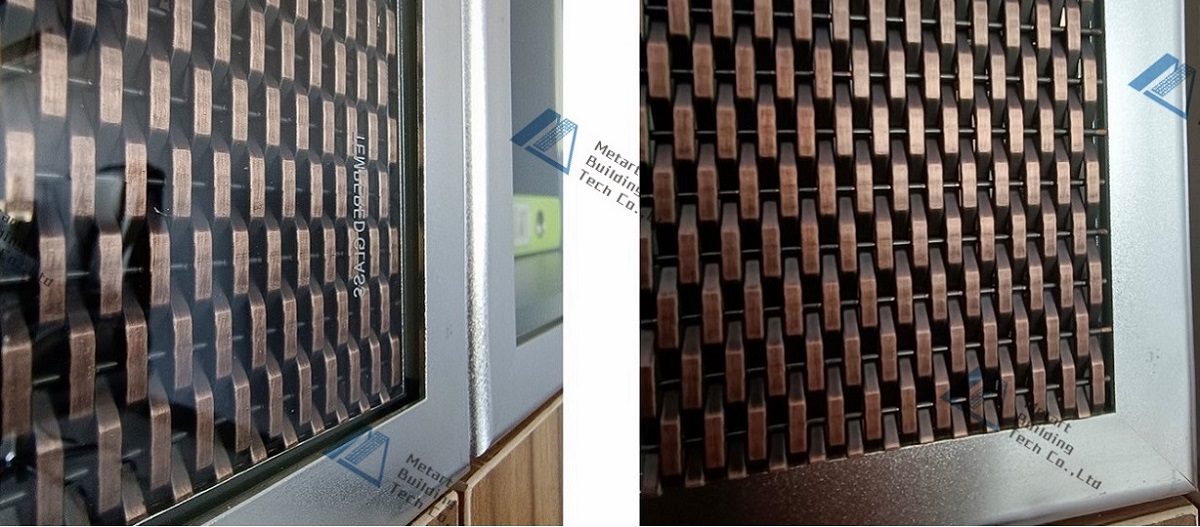

This side of the mesh pattern looks and feels more flat and smooth and would be a good option for elevator cab interior cladding wire mesh and other commercial building interior wall cladding choices.

Please refer to the following specifications:

Material	Stainless Steel 201, 304 or 316 is optional
Type：	Rigid mesh
Flat SS Strip ( Width x Thickness)	3x1.2mm
Rod Diameter	1.5mm
Rod Pitch	9.35mm
Overall Thickness of the fabric	3.6mm
Opening Area	0%
Block out	100%
Privacy Rate	100%
Weight:	10.7kg/Square Meter
Finish	Antique copper plating
Customized specifications and mini-orders are accepted.
All optional finishes	Mill Finish ( Original stainless steel bright finish) , Antique bronze plating, Antique copper plating, Antique brass plate Vacuum Titanium Plated-Golden, Titanium Plated Black, Titanium Plated Rose Gold, Painted, PVDF Coated, Powder Coated.
Note: All the measurements, including wire thickness, diameter, opening, and overall thickness, are nominal numbers. The actual specification might have a tiny bit of tolerance, according to fabrication.
