METART-WW32D Interior Cladding Wire Mesh made of stainless steel architectural wires

Specification

Pattern Code: METART-WW32D

Type: Rigid Architectural Mesh

Materials: SS304, SS316, SS201, True copper, brass, bronze, etc.

Finish: Antique Copper Plated Finish.

Opening rate: 0%

Square Meter Weight: Approx 12.5KG

Sheet Size: Within 2000x4000MM ( for mill finish )

GET A QUOTE

Introduction



Introducing The Interior Cladding Wire Mesh METART-WW32D



The METART-WW32D is an elegant architectural wire mesh designed for commercial interior cladding.

Made from 1.4mm straightened stainless steel wire rods, it features decorative crimped wires that create a unique ornamental appearance on both sides.

Originally 1.85mm wire diameter, the decorative wires are crimped to produce double-sided architectural features, adding a sophisticated touch to any interior space.

This metal fabric is tightly woven without any openings, making this architectural metal wire mesh as solid as solid metal sheets, the flat surface on both sides makes it ideal for any commercial wall cladding.



Breakdowns of the Structure of Architectural Wire Mesh WW32D



Weaving Type: Palin Dutch Weave.

Weft Wire - 1.85MM before being crimped and milled, decorative Side A.

2.5x8.3MM decorative star surface.

Weft Wires - 1.85MM before Crimping and Milling.  decorative Side B,

2.7x4.5mm decorative oval surface.



1.4mm straightened stainless steel wire rods.



Side view of this wire mesh

Specification Overview

Optional Materials

SS304, SS316, SS201, Copper, Brass, Bronze

Type

Rigid Architectural Wire Mesh

Decorative Wire Diameter

1.85mm before crimping.

Wire Rod Diameter

1.4mm

Opening

0mm

Rod Pitch

8.5mm

The overall thickness of the metal mesh

3mm

Privacy Rate

100%

Weight

12.5kg/Square Meter

Optional ways of cut

Straight Cut Only

Optional Finishes

Mill Finish (Original stainless steel finish),
Antique Bronze plating,

Antique Copper plating,

Antique brass plating,

PVD titanium plated.

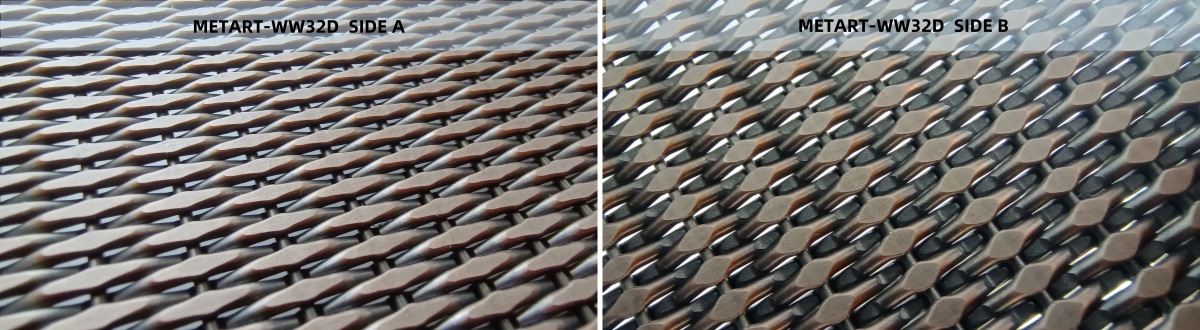

Double-Faced Architectural Features



This architectural metal mesh has a different ornamental appearance on both sides. Both sides can be applied for decoration purposes.

Please refer to the following pictures.

Although this architectural woven wire pattern has no openings, it remains ventilative.

In the following picture, you can see from a 45-degree angle that natural openings are created by the ups and downs of the crimped wires.

This is what sets this architectural metal mesh apart from other solid decorative metal plates.



Extensive Applications



This designer metal mesh panel is suitable for a wide range of commercial cladding projects, including the following.


► Elevator cabin Interiors & lobby wall cladding

► Hotel wall cladding where the fancy metal mesh is needed.

► Commercial interior partition or space divider infill panels where great privacy is required.

► Railing infill metal mesh panels that require extremely high privacy
