5 Heddle Weave Stainless Steel Mesh

Specification

Material: SS302,304, 304L, 316,316L,310S

Type: Industrial Woven Wire Mesh

Weave Pattern: Five shed twill weave

Mesh Count: 30-107

Wire Diameter: 0.14-0.9mm

Standard Width: 914mm, 1000mm, 1220mm and Custom sizes

Standard Length: 30M. (custom length accepted)

GET A QUOTE

Introduction

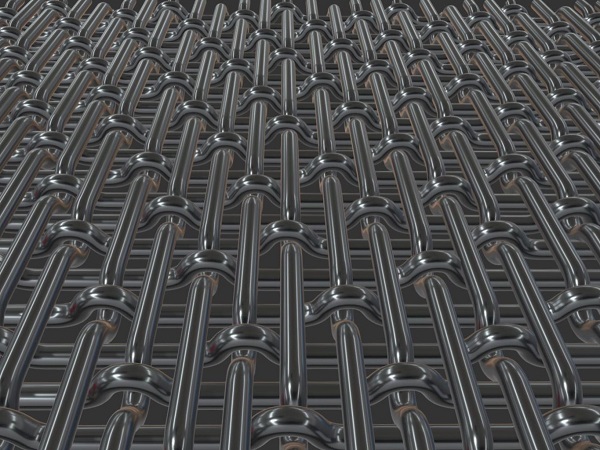

Five-heddle weave wire mesh is also known as 5 heddle atlas wire mesh, five shed wire mesh, five shed twill

weave wire mesh, five shed mesh, five heddle wire cloth, TELA wire mesh, etc. This mesh is made of stainless steel wires in a twill weave way.
The weft wire passes over four warps at the same time and then goes under one warp wire and then up through another four wires repeatedly and vice versa. Using this weaving way, the wire fabric gets a very smooth surface on one side which increases the efficiency of filter cake removal.

Property: flat and smooth surface, easy to remove the filter media, high flow rates.
Packing: Inner kraft paper, outside plastic film, and then plywood case.
Lead time: 5 Days for items in stock. Custom-made items need to be negotiated.

Specification List

Mesh Count		Wire Diameter (mm)		Micro Retention		Thickness	Approx.Weight
Warp	Weft	Warp	Weft	abs. μm	nom. Μm	mm	Kg/m2
30	18	0.5	0.5	0.60-0.65	0.37	1.48	3
28	17	0.47	0.47	0.75-0.80	0.46	1.41	2.53
24	20	0.6	0.6	0.65-0.75	0.49	1.7	3.96
15	13	0.9	0.9	1.15-1.20	0.85	2.6	5.67
80	60	0.2	0.2	0.20-0.22	0.127	0.55	1.4
77	40	0.24	0.24	0.38-0.40	0.095	0.68	1.65
65	36	0.3	0.3	0.26-0.29	0.1	0.84	2.27
55	36	0.3	0.3	0.25-0.28	0.175	0.84	2.05
132	85	0.14	0.2	0.09-0.11	0.052	0.44	1.47
107	132	0.16	0.14	0.055-0.065	0.055	0.44	1.3
107	125	0.16	0.14	0.065-0.08	0.07	0.45	1.27
107	59	0.16	0.16	0.16-0.18	0.077	0.45	1.09

Application

•Wastewater filtration (mechanical wastewater cleaning)
•Water processing for industrial purposes.
•Mining (e.g. disc filtration systems)
•Exhaust gas filtration
•Distillation columns/purification columns
•Backwashing filtration
•Filter systems with continuous cleaning.
