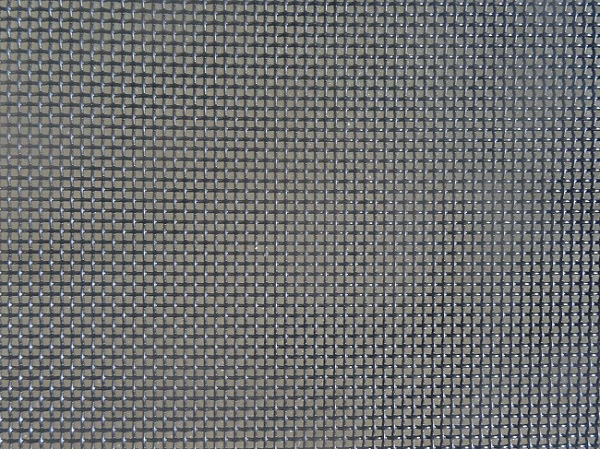

Bushfire Stainless Steel Wire Mesh Panel
Material: Marine Grade 316 wires or ss304 wires
Type: Bushfire ember protective mesh
Mesh Count: 9mesh, 10mesh, 11mesh, 12mesh, 14mesh
Wire Diameter:1.0mm, 0.9mm, 0.8mm, 0.7mm, 0.55mm, 0.5mm
Standard Width: 750mm, 820mm, 900mm, 1200mm, 1500mm and custom sizes.
Standard Length: 2000mm, 2200mm. 2400mm and custom sizes.
Finish: Powder Coated Black or Mill Finish, Other color can be customized.
GET A QUOTE
Bushfire mesh is also called ember wire mesh which is generally used as a protective mesh in both residential and commercial buildings that are prone to bushfire risks against bushfire embers.
Based on the regulations of the Australia Standard AS3959-2009 Construction buildings in bushfire-prone areas, the corrosion-resistant screen mesh that is equal to or less than 2mm aperture and made of non-combustible material can meet the highest Bush Fire Attach Level (BAL) requirement.
The flat sheet bushfire protective wire mesh ranges from 9x9Mesh to 14x14Mesh in cut-to-size panels. Material can be either stainless steel 304 or marine grade stainless steel 316 based on different environments.
Please refer to the following table for regular specifications.
|
Item# |
Type |
Material |
Mesh Count |
Wire Dia. |
Aperture |
Opening Area |
Finish |
|
BF09100ST |
Sheet |
SS316 / SS304 |
9x9 |
1.0mm |
1.82mm |
41.70% |
Mill Finish or Black Powder Coated |
|
BF09090ST |
Sheet |
SS316 / SS304 |
9x9 |
0.9mm |
1.92mm |
46.40% |
Mill Finish or Black Powder Coated |
|
BF10090ST |
Sheet |
SS316 / SS304 |
10x10 |
0.9mm |
1.64mm |
41.70% |
Mill Finish or Black Powder Coated |
|
BF11080ST |
Sheet |
SS316 / SS304 |
11x11 |
0.8mm |
1.51mm |
42.70% |
Mill Finish or Black Powder Coated |
|
BF12070ST |
Sheet |
SS316 / SS304 |
12x12 |
0.7mm |
1.42mm |
44.90% |
Mill Finish or Black Powder Coated |
|
BF14055ST |
Sheet |
SS316 / SS304 |
14x14 |
0.55mm |
1.26mm |
48.50% |
Mill Finish or Black Powder Coated |
|
BF14050ST |
Sheet |
SS316 / SS304 |
14x14 |
0.5mm |
1.31mm |
52.40% |
Mill Finish or Black Powder Coated |
Standard Sheet Size:
750 x 2000MM / 750 x 2200MM / 750 x 2400MM
820 x 2000MM / 820 x 2200MM / 820 x 2400MM
900x 2000MM / 900 x 2200MM / 900x2400MM
1200x 2000MM / 1200 x 2200MM / 1200 x 2400MM
Custom sizes are accepted.
Introduction of BAL grades.
BAL – Low (the risk of bushfire ember attack is considered to be very low)
BAL – 12.5 (increasing level of ember attack with a heat flux up to 12.5kW/m²)
BAL – 19 (increasing level of ember attack and ignition of debris with a heat flux up to 19 kW/m²)
BAL – 29 (increasing level of ember attack and ignition of debris with a heat flux up to 29 kW/m²)
BAL – 40 (increasing level of ember attack and ignition of debris with a heat flux up to 40 kW/m² and increased likelihood of exposure to flames)
BAL – FZ (direct exposure to the flames from the fire front in addition to heat flux greater than 40 kW/m² and ember attach)
