Wire Mesh for Cabinet Doors


Pattern Code: METART-WW09MINI

Material: SS201, SS304, SS316

Type: Cabinet Wire Mesh

Opening Rate: 63%

Square Meter Weight: 1.83KG

Finish: Mill Finish and other finishes in the below specication table.

Max Size: 3M x 30M ( 10 feet x 100 feet)

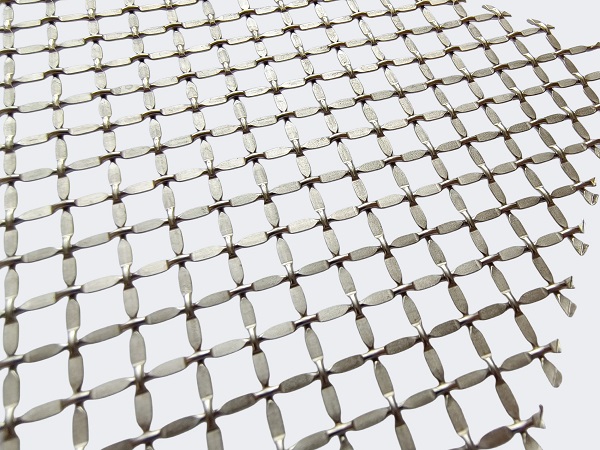

METART-WW09MINI - An Unique Light Weight Wire Mesh for Cabinet Doors


Discover a world of elegance and innovation with our Cabinet Designer Wire Mesh METART-WW09MINI, our exquisite wire mesh pattern designed to elevate the visual appeal of cabinet doors. This unique creation takes inspiration from the renowned WW09 family, offering a much lighter and more versatile version that we proudly call "METART-WW09MINI".

Craftsmanship Unveiled: How METART-WW09MINI Is Produced

METART-WW09MINI demonstrates our commitment to precision and quality craftsmanship. Here's how we bring this decorative wire mesh to life:

1. Exquisite Stainless Steel Selection:

Our journey towards perfection commences with a meticulous selection of premium stainless steel wire, boasting an impressive 1mm diameter and exceptional tensile strength exceeding 1000MPA to ensure the resilience and rigidity of the architectural wire mesh.

Our default choice is AISI 304 stainless steel, a food-grade material widely employed in the food industry and kitchenware. It contains 8% nickel and 18% chromium elements, offering robust corrosion resistance even without any additional coating and an even better weather resistance property after being plated or painted.

For projects demanding superior weather resistance and unparalleled durability, we offer the option of Marine Grade 316 Stainless Steel. This high-end stainless steel boasts 10% nickel, 18% chromium, and 2% molybdenum, ensuring extraordinary resistance to various forms of corrosion, including the harshest marine environments. It's the go-to material for exterior decorations that need to stand the test of time.

Stainless Steel 201 provides an economical choice for projects with budget constraints, primarily suited for interior use. When combined with additional coating layers, it becomes a pragmatic solution, offering a balance between cost-effectiveness and performance.

At METART-WW09MINI, we prioritize not only aesthetics but also the strength and resilience of our materials to ensure your cabinet doors last for years to come.

2. Precise Crimping:

The chosen wires are carefully processed through specially designed alloy toolings to achieve the desired decorative wire shape. This crimping process gives the wire its unique character and an extra force to keep its rigidity.

3. Flattening and Milling:

The major sections of the wire are deep crimped and milled into a flat surface, creating a thinner and wider profile compared to their original shape for decoration and enhancing the privacy of the wire grilles.

4. Weaving Excellence:

Warp wires are precisely cut to size and threaded into the heddles of the loom, ensuring impeccable positioning. Weft wires are manually fed into the fabric carefully by our experienced operator, completing the intricate weaving process.


Product Specifications Table

Raw Material

Stainless Steel 201, Stainless Steel 304, or marine grade Stainless Steel 316, optional


Cabinet Wire Mesh

Wire Diameter Before Flattened


Clear Hole Size


Overall thickness of the fabric


Opening Area


Privacy Rate



1.83kg/Square Meter


Mill Finish

All optional ways of cutting

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel finish),

Brass Plated, Copper Plated,
Antique Bronze plated, Antique Copper plated, Antique brass plated,

PVD titanium plated (gold, rose gold, Grey, Black),

Common Painted to any custom-made color

PVDF Painted


All the measurements including wire diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance during the production process.


Customization and Mini Orders


At our company, we understand that each project is unique. That's why we offer customized specifications to meet your exact requirements. Whether you need a specific size, finish, or quantity, we're here to bring your vision to life. No order is too small; we gladly accept mini orders.
