METART-WW05-22134-Antique Copper Cabinet Grille
Material: SS304 / SS316 /SS201
Type: Rigid Mesh
Opening Area: 36.8%
Weight: Approx 6.1kg/Square Meter
Finish: Antique Copper Plated
Screen Width: Customized.
Screen Length: Customized.
GET A QUOTEMETART-WW05-22134 is a pain-woven flat wire mesh. With a typical square hole pattern, #22134 represents a 2.2mm wire diameter and 1.0 mm thick wire, and with a 3.4mm clear hole size.

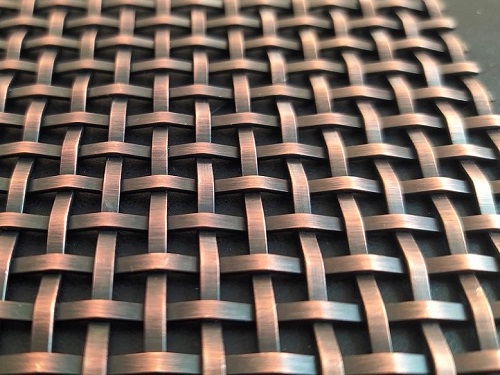

As you see from the above photos, this decorative wire grille is with an antique copper-plated finish. This mesh is normally made of grade 304 stainless steel for interior applications.
But you can either choose the original mill-finished color or choose a painted or gorgeous PVD-plated finish.
You can either use this pattern of mesh to make a grille mesh cabinet door or frame it to a room divider or partition metal screens.
Meantime, this decorative wire pattern can be used commercially for architectural fencing infills, wine bar furnishing material, fancy creative funiture mesh, etc.
Please refer to the following specifications.
|
Material |
Stainless Steel 304 , 316 or SS201, optional |
|
Type |
Rigid Mesh |
|
Flat Wire Strip: |
2.2x1mm |
|
Clear Hole Size |
3.4mm |
|
The total thickness of the fabric |
2mm |
|
Opening Area |
36.8% |
|
Block out |
63.2% |
|
Privacy Rate |
63.2% |
|
Weight |
6.1kg/Square Meter |
|
Finish |
Antique Copper Plated. |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut, Diamond Cut |
|
All optional Finish |
Mill Finish ( Original stainless steel bright finish）, |
|
Customized specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
Please refer to the following table for all the specifications of METART WW05
|
Item # |
Flat Strip |
Clear Hole Dia. |
Opening Area |
Privacy Rate |
Weight |
Overall Thickness |
|
METART 05-61585 |
6x1.5mm |
8.5x8.5mm |
34% |
66% |
9.5KG / Square Meter |
3.4mm |
|
METART 05-41022 |
4x1mm |
2.2x2.2mm |
11% |
89% |
9.2KG / Square Meter |
3.2mm |
|
METART 05-31507 |
3x1.5mm |
7x7mm |
49% |
51% |
7.0 KG / Square Meter |
3.0mm |
|
METART 05-31005 |
3x1.0mm |
5x5mm |
39% |
61% |
5.8 KG / Square Meter |
2.0mm |
|
METART 05-31204 |
3x1.2mm |
4x4mm |
33% |
67% |
7.6KG / Square Meter |
2.5mm |
|
METART 05-31205 |
3x1.2mm |
5x5mm |
39% |
61% |
7.0 KG / Square Meter |
2.4mm |
|
METART 05-31207 |
3x1.2mm |
7x7mm |
49% |
51% |
5.6 KG / Square Meter |
2.4mm |
|
METART 05-31210 |
3x1.2mm |
10x10mm |
59% |
41% |
4.3 KG / Square Meter |
2.4mm |
|
METART 05-31510 |
3x1.5mm |
10x10mm |
59% |
41% |
5.4 KG / Square Meter |
3.0mm |
|
METART 05-25103 |
2.5x1.0mm |
3x3mm |
29.7% |
70.3% |
7.1 KG / Square Meter |
2.0mm |
|
METART 05-22134 |
2.2x1.0mm |
3.4x3.4mm |
36.8% |
63.2% |
6.1 KG / Square Meter |
2.0mm |
|
METART 05-22834 |
2.2x0.8mm |
3.4x3.4mm |
36.8% |
63.2% |
4.9 KG / Square Meter |
1.6mm |
|
METART 05-22084 |
2.2x0.8mm |
4x4mm |
37% |
63% |
4.0kg / Square Meter |
1.6mmm |
|
METART 05-18186 |
1.8x1.8mm |
6.2x6.2mm |
60% |
40% |
6.4KG / Square Meter |
3.6mm |
