PRODUCTS
Industrial Wire Mesh & Filters / Brass-Copper-Bronze Mesh & Wire Cloth

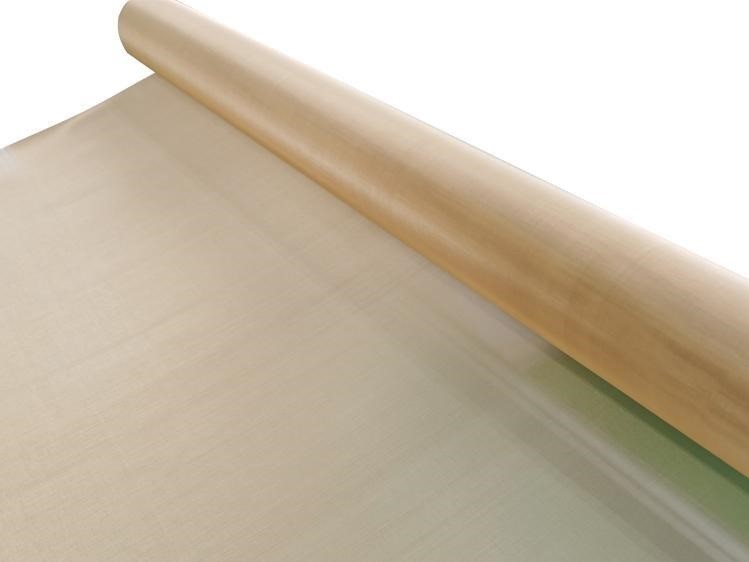

Phosphor Bronze Wire Cloth

Specification

Material: Phosphor bronze wires

Type: Industrial Woven Wire Cloth / Shielding mesh

Weave Pattern: Plain Weave and Twill Weave

Mesh Count: Mesh1x1- Mesh 500x500

Wire Diameter: 0.025mm - 2mm

Width: 0.2M-2M

Length: 30M and other custom sizes

GET A QUOTE

Introduction

Phosphor bronze woven wire mesh is also known as bronze wire mesh or tin copper mesh which is also a copper-based alloy wire mesh.

For those bronze mesh that is made of very fine bronze wires, they are always referred to as bronze wire cloth.

Consisting of 85% - 90% copper and 10% -15% tin, phosphor bronze mesh is acid and alkali-resistant, offering it a wide range of industrial applications.

Its beautiful appearance also makes it an ideal material for decorative window screen infill panels or other interior decoration or architectural applications.
Property: Non-magnetic, wear-resistant, good ductility, good malleability, acid, and alkali resistant
Mesh Count Range: 1mesh~500mesh,
Width: 0.1m~2m
Length: 15m~50m

Specification List:



Mesh Count

/Inch

Wire Diameter

Aperture

Open Area

%

Inch

MM

Inch

MM

1 × 1

.080

2.03

.920

23.37

84.6

2 × 2

.063

1.60

.437

11.10

76.4

3 × 3

.054

1.37

.279

7.09

70.1

4 × 4

.063

1.60

.187

4.75

56.0

4 × 4

.047

1.19

.203

5.16

65.9

5 × 5

.041

1.04

.159

4.04

63.2

6 × 6

.035

.89

.132

3.35

62.7

8 × 8

.028

.71

.097

2.46

60.2

10 × 10

.025

.64

.075

1.91

56.3

10 × 10

.020

.51

.080

2.03

64.0

12 × 12

.023

.584

.060

1.52

51.8

12 × 12

.020

.508

.063

1.60

57.2

14 × 14

.023

.584

.048

1.22

45.2

14 × 14

.020

.508

.051

1.30

51.0

16 × 16

.018

.457

.0445

1.13

50.7

18 × 18

.017

.432

.0386

.98

48.3

20 × 20

.020

.508

.0300

.76

36.0

20 × 20

.016

.406

.0340

.86

46.2

24 × 24

.014

.356

.0277

.70

44.2

30 × 30

.013

.330

.0203

.52

37.1

30 × 30

.012

.305

.0213

.54

40.8

30 × 30

.009

.229

.0243

.62

53.1

35 × 35

.011

.279

.0176

.45

37.9

40 × 40

.010

.254

.0150

.38

36.0

50 × 50

.009

.229

.0110

.28

30.3

50 × 50

.008

.203

.0120

.31

36.0

60 × 60

.0075

.191

.0092

.23

30.5

60 × 60

.007

.178

.0097

.25

33.9

70 × 70

.0065

.165

.0078

.20

29.8

80 × 80

.0065

.165

.0060

.15

23.0

80 × 80

.0055

.140

.0070

.18

31.4

80 × 80

.0047

.119

.0078

.198

39

90 × 90

.005

.127

.0061

.16

30.1

100 × 100

.0045

.114

.0055

.14

30.3

100 × 100

.004

.102

.0060

.15

36.0

100 × 100

.0035

.089

.0065

.17

42.3

110 × 110

.0040

.1016

.0051

.1295

30.7

120 × 120

.0037

.0940

.0064

.1168

30.7

150 × 150

.0026

.0660

.0041

.1041

37.4

160 × 160

.0025

.0635

.0038

.0965

36.4

180 × 180

.0023

.0584

.0033

.0838

34.7

200 × 200

.0021

.0533

.0029

.0737

33.6

250 × 250

.0016

.0406

.0024

.0610

36.0

270 × 270

.0016

.0406

.0021

.0533

32.2

300 × 300

.0051

.0381

.0018

.0457

29.7

325 × 325

.0014

.0356

.0017

.0432

30.0

400 × 400

.0010

.0254

.0015

.370

36.0

You May Also Like

Application

•Filtration mesh for liquid and gas filtration

•RFI and EMI shielding mesh

•Architectural and interior decoration.

•Laminated glass infill mesh
