METART-WW47-Hybrid Woven Decor Screen Mesh
Material: Stainless steel 304 or 316 + Real Brass Wires
Type: Rigid Wire Mesh
Opening Area: 50%
Weight: Approx 8.8kg/Square Meter
Finish: Mill Finish (Original stainless steel and brass finish)
Screen Width: Within 2000MM
Screen Length: Within 4000MM

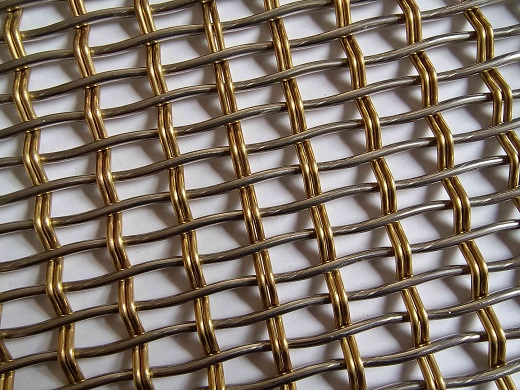

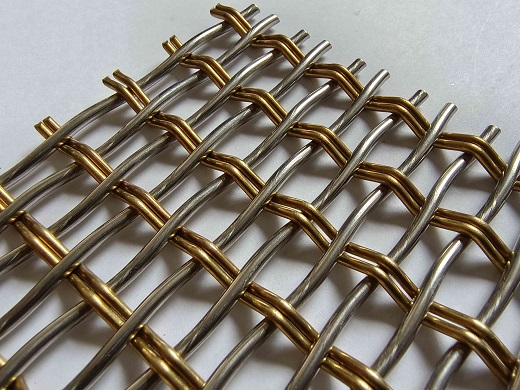

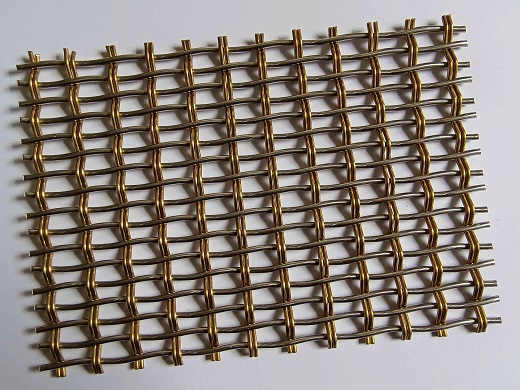

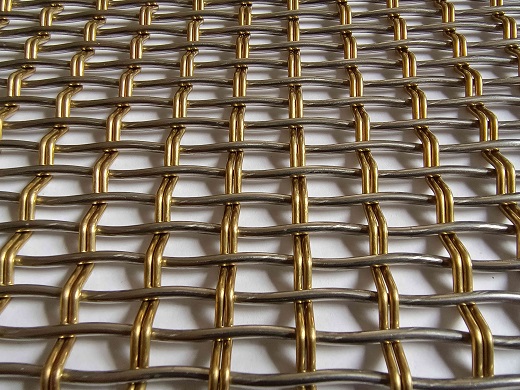

GET A QUOTEMETART WW47 is made of double brass warp wire groups and twisted stainless steel weft wires. The twist-designed stainless steel wires offer this wire mesh pattern a fantastic 3D appearance as if a shoal of fish swimming in the ocean.
Adopting 2.72mm stainless steel hard wires and double 1.95mm brass wires, this decorative mesh pattern is super rigid and suitable for the architectural purpose.
This décor screen pattern can be used as decorative railing infill mesh panels, commercial building fencing infill mesh, shopfitting partition screen panels, office divider screen mesh, and wall cladding architectural mesh, etc.
Please refer to the following specifications.
|
Material |
Stainless Steel 304 or 316 wires + Real brass wires |
|
Type |
Rigid wire mesh |
|
Double Warp Brass Wire Diameter |
1.95mm x double wires |
|
Single Weft SS Wire Diameter |
2.72mm |
|
Vertical Hole Centers |
8.1mm |
|
Horizontal Hole Centers |
16.4mm |
|
The total thickness of the fabric |
5.2mm |
|
Opening Area |
50% |
|
Block out |
50% |
|
Privacy Rate |
50% |
|
Weight |
8.8kg/Square Meter |
|
Finish |
Mill Finish（Original stainless steel and brass color） |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut Only |
|
All optional Finish |
Mill Finish（Original stainless steel and brass color） |
|
Custom specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
