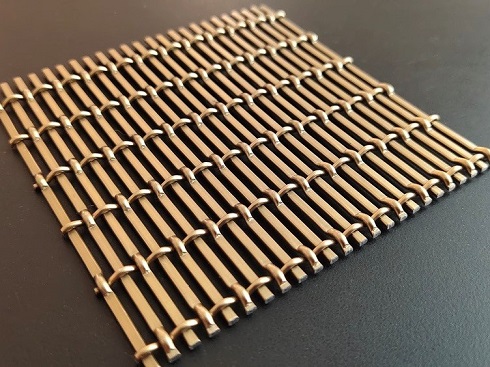

METART-WW26-PVD Gold Titanium Plated Cladding Architectural Mesh

Specification

Material: Stainless Steel 304 / Stainless Steel 316 / SS201

Type: Rigid Cladding Wire Mesh

Opening Area: 46%

Weight: Approx 6kg/Square Meter

Finish: Vacuum Titanium Plated-Gold

Screen Width: Max 4 meters wide, for mill finish only

Screen Length: 30 meters rolls, for mill finish only

GET A QUOTE

Introduction

This is a vacuum titanium-plated golden version of woven wire pattern WW26.

Please note that the material is stainless steel. Other finishes and colors can be customized.

For more details, please refer to the following specifications.

Material

Stainless Steel 304 or 316, Aluminum Alloy optional

Type

Rigid mesh

Wire Strip

2.2x1.2mm

Wire Rod Diameter

1.5mm

Clear Hole Size

2x16mm

Strip Pitch

4.2mm

Rod Pitch

17.5mm

The total thickness of the fabric

3.1mm

Opening Area

46%

Block out

54%

Privacy Rate

54%

Weight

6kg/Square Meter

Finish

vacuum titanium plated gold

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
