Specification

Material: Stainless Steel 304 / SS304 / SS201

Type: Rigid Architectural Wire Mesh

Opening Area: 48%

Weight: Approx 8.1kg/Square Meter

Finish: Antique Brass Finish ( other finishes vailable)

Screen Width: Within 4000MM

Screen Length: Within 4000MM

GET A QUOTE

Introduction

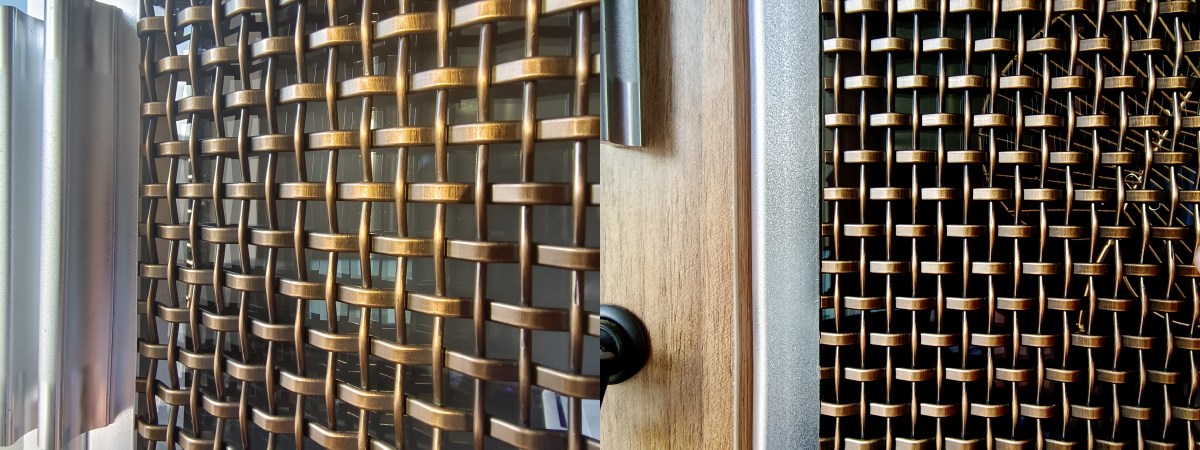

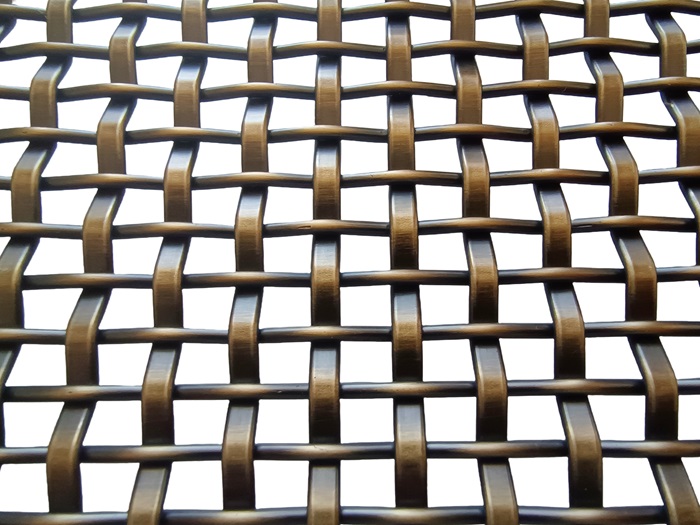

METART-WW24 is an architectural wire mesh known for its strong structural characteristics. The mesh pattern of METART-WW24 consists of 3.8x1.5mm flat wire strips as weft (horizontal wires) and 2mm regular round wires as warp (vertical wires). The combination of these wire sizes contributes to the overall strength and durability of the mesh.

One notable feature of METART WW24 is its small hole size, which enhances its structural integrity. This makes it suitable for various architectural and decorative applications, both indoors and outdoors. Some examples of its use include architectural railing infill panels, ornamental balcony fencing panels, partition screen mesh, and facade mesh screens.

As a relatively heavy-duty woven wire mesh, METART-WW24 provides reliable security, while also offering an aesthetically pleasing appearance to your projects.

Please refer to the following specifications.

Material	Stainless Steel 304, 316, 201, optional
Type	Rigid mesh
Wire Strip	3.8x1.5mm
Wire Rod Diameter	2mm
Clear Hole Size	5x6.2mm
Strip Pitch	10mm
Rod Pitch	6.5mm
The total thickness of the fabric	3.5mm
Opening Area	48%
Block out	52%
Privacy Rate	52%
Weight	8.1kg/Square Meter
Finish	Antique Brass Plated Finish
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut Only
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
