METART-WW21-41019-Architectural Metal Fabric

Specification

Material: Stainless Steel 304 / Stainless Steel 316

Type: Rigid Mesh

Opening Area: 28%

Weight: Approx 6.4kg/Square Meter

Finish: Vacuum Titanium Plated-Gold

Screen Width: Customized.

Screen Length: Customized.

GET A QUOTE

Introduction

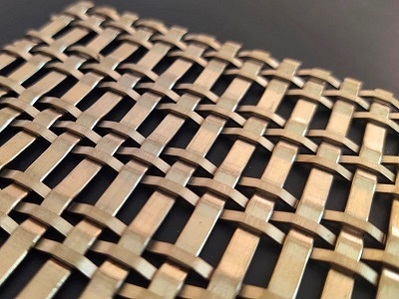

This is golden titanium plated finish of pattern METART WW21-41019.

Please note this architectural metal mesh is made of stainless steel wire strips. Both of grade 304 stainless steel and marine grade 316 can be customized according to the customer's requirements.

This metal fabric can be used in wall cladding panels and partition screens.

You are welcome to choose different finishes and colors according to your projects

For more details, please refer to the following specifications.

Material	Stainless Steel 304 or 316, optional
Type	Rigid mesh
Bigger Wire Strip	4x1mm
Smaller Wire Strip	2.2x0.8mm
Bigger Strip Pitch	7mm
Smaller Strip Group Pitch	19mm
The total thickness of the fabric	2.1mm
Opening Area	28%
Block out	72%
Privacy Rate	72%
Weight	6.4kg/Square Meter
Finish	Vacuum Titanium Plated Golden
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut Only
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
