Anti-Slip Perf Oo Planks with Drainage Hole

Specification

Material: Mild Steel, Galvanized Steel, Aluminum, Stainless Steel

Type: Perforated Anti-slip Mesh planks

Width: Custom-made.

Length: Within 10 inches,3048mm (up to 12 inches, 3658mm)

Height: 30-102mm and custom-made

Finish: Mill finish, Hot-dip galvanized, Electro-Galvanized, Powder Coated finish

GET A QUOTE

Introduction

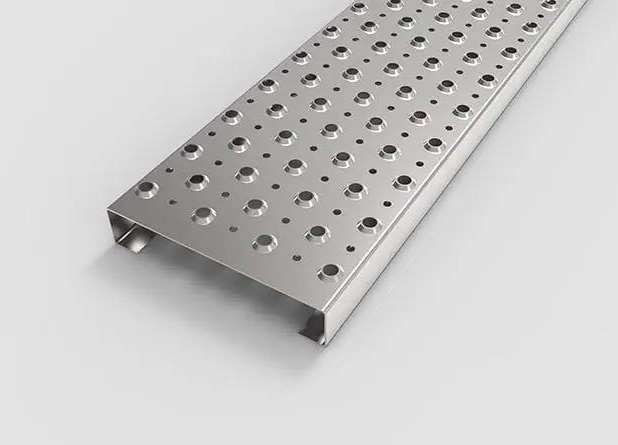

This dimpled perforated safety grating is also an O-type perforated metal grating plank, surrounded by drainage holes.

As each big dimple is accompanied by a small hole, it is called by us Perf Oo Safty Grating.

With optional hole diameters10mm or 20mm, this type of safety grating is generally made with a 45-degree staggered hole arrangement.

Customers are allowed to have custom-made holes centers to choose our regular combinations.

Besides the regular 45-degree staggered perforated pattern of these slip-resistant plates, METART can also produce 60-degree staggered hole patterns and other decorative patterns based on customers' needs.

The surrounding drainage holes help to drain the fluid. The big dimple holes allow mud and debris to get through. Meantime, the punched-up dimple design offers certain fractions and tractions.

Please refer to the following regular specifications table.

Pattern	Hole Dia. mm	Pitch mm	Drainage mm	Regular Height	Thickness Gauge Mild Steel/GA	Thickness Gauge Aluminum	Thickness Gauge Stainless Steel
45°Perf-Oo10455	10	45	5	1.5" to 4" (38-102	#16,#14 1.5mm, 2mm	0.08", 0.1" 2mm,2.5mm	#17 (1.4mm)
45°Perf-Oo20608	20	60	8	1.5" to 4" (38-102	#16,#14,#13 1.5mm, 2mm,2.3mm	0.08", 0.1",0.116 2mm,2.5mm,3mm	#17 (1.4mm)
45°Perf-Oo20908	20	90	8	1.5" to 4" (38-102	#14,#13,#12 2mm, 2.3mm,2.7mm	0.08", 0.1",0.116 2mm,2.5mm,3mm	#17 or #14 1.4mm or 1.9mm
Note: Width: Custom-made Regular Length: Within 10' (3048mm)， up to 12' (3658mm)
