Specification

Material: Stainless Steel 304 / Stainless Steel 316

Type: Rigid Cabinet Mesh

Opening Area: 39%

Weight: Approx 5kg/Square Meter

Finish: Mill Finish

Screen Width: Max 4000mm for Mill Finish only

Screen Length: up to 30Meters roll.

GET A QUOTE

Introduction

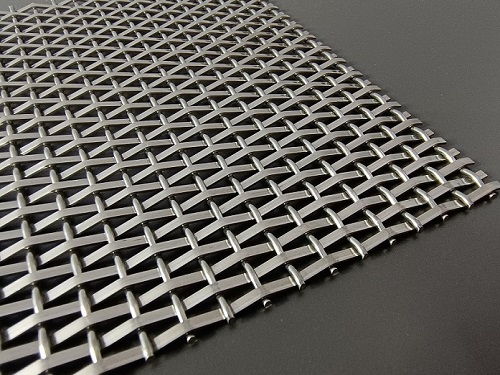

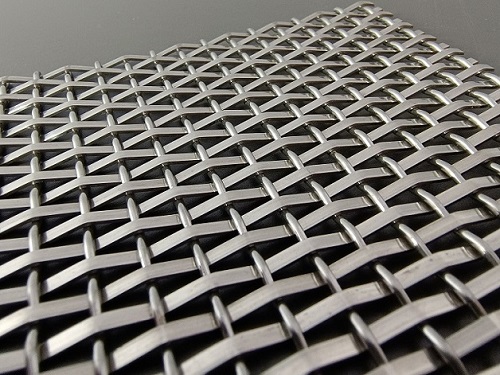

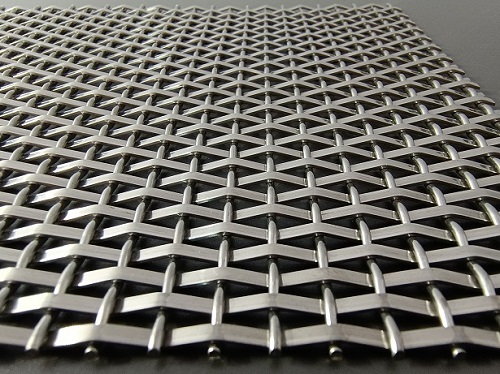

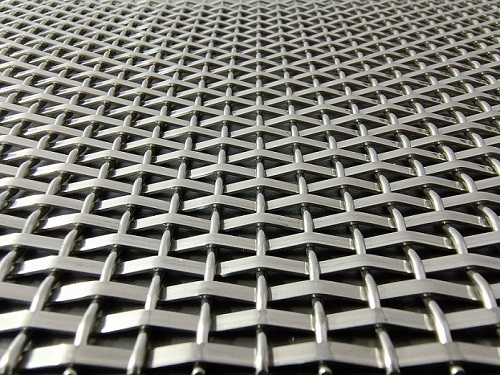

METART WW23-22082 looks similar to WW22. The number 22082 represents a 2.2x0.8mm wire strip and 2mm slot.

Both of WW23 and WW22 are slot hole decorative wire mesh, but WW23 has an opposite hole direction.

In the meantime, the strip wires of decor mesh pattern WW23-22082 are smooth and gloss without any crimps.

This decorative stainless steel grille can be used in kitchen cabinet door fabrication, wall cladding projects, and decorative partition screen fabrications.
Please refer to the following specifications.

Materials	Stainless Steel 304 or 316, SS201
Type	Rigid Cabinet WIre mesh
Wire Strip	2.2x0.8mm
Wire Rod Diameter	1.45mm
Clear Hole Size	2.2x5.6mm
Strip Pitch	4.5mm
Rod Pitch	7.1mm
The total thickness of the fabric	2.45mm
Opening Area	39%
Block out	61%
Privacy Rate	61%
Weight	5kg/Square Meter
Finish	Stainless Steel Mill Finish
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut Only
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
