Specification

Material: Stainless steel 304 or stainless steel 316

Type: Rigid Wire Mesh

Opening Area: 59%

Weight: Approx 5.2kg/Square Meter

Finish: Mill Finish

Screen Width: Customized.

Screen Length: Customized.

GET A QUOTE

Introduction

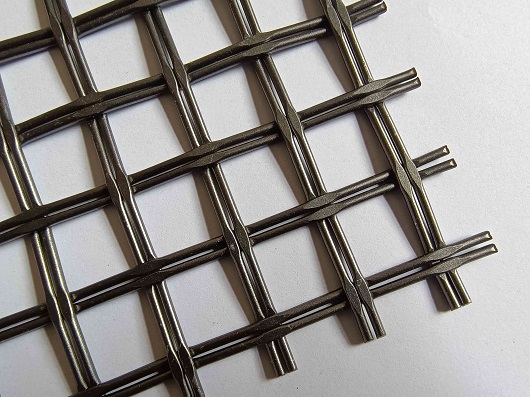

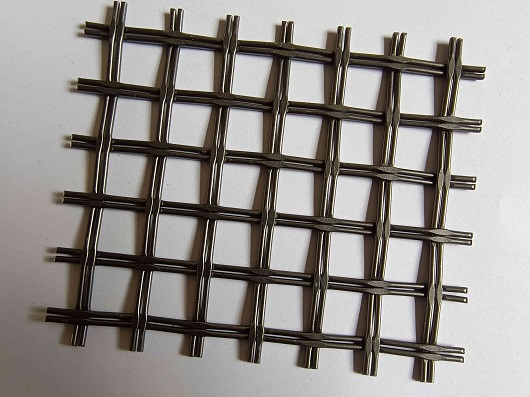

This is a dark grey painted version of the mesh pattern METART WW15 pattern, which is a 2mm double-wire woven decorative wire mesh.

This architectural decor woven wire is good to be cabinet decoration mesh grilles, furniture metal wire mesh, room divider screen infill panels, wall cladding decorative wire mesh, etc.

Please refer to the following specification.

Material	Stainless Steel 304 or 316, optional
Type	Rigid mesh
Wire Diameter （Single wire）	2mm
Clear Hole Size	14mm
The total thickness of the fabric	2.9mm
Opening Area	59%
Block out	41%
Privacy Rate	41%
Weight	5.2kg/Square Meter
Finish	Dark Grey Painted Finish
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut, Diamond Cut
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,
Custom specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
