METART-WW05-31507-Kitchen Cabinet Inserts

Specification

Material: SS304 / SS316 / SS201

Type: Rigid Mesh

Opening Area: 49%

Weight: Approx 7kg/Square Meter

Finish: Mill Finish

Screen Width: Customized.

Screen Length: Customized.

GET A QUOTE

Introduction

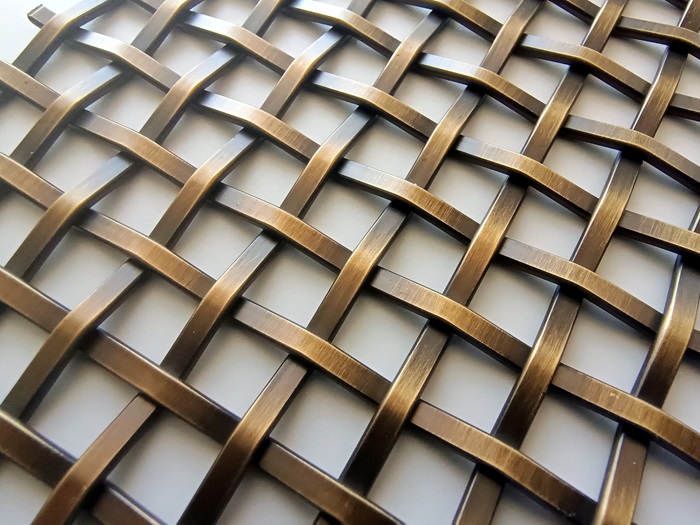

METART-WW05-31507 is a typical flat strip architectural woven wire mesh. The number 31507 represents a flat architectural wire mesh with 3.0mm flat wire strips, 1.5mm wire thickness, and a 7mm aperture size.

This is a reinforced version of 31210 and 31207, the wire is getting thicker and the hole is made smaller, which offers a higher tensile and stronger structure to the mesh.

This decorative stainless steel wire mesh pattern is more suitable for higher security requirements, such as architectural fencing, building metal façades, or railing infill panels.

If you like, you can also use it as a cabinet door mesh or vent cover mesh to increase its security level as well as make sure of its ventilation.

Please refer to the following specifications.

Material

Stainless Steel 304 or 316, optional

Type

Rigid mesh

Flat Wire Strip:

3x1.5mm

Clear Hole Size

7mm

The total thickness of the fabric

3.0mm

Opening Area

49%

Block out

51%

Privacy Rate

51%

Weight

7kg/Square Meter

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, Vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Please refer to the following table for all the specifications of METART WW05

Item #

Flat Strip

Clear Hole Dia.
mm

Opening Area

Privacy Rate

Weight

Overall Thickness

Metart 05-61585

6x1.5mm

8.5x8.5mm

34%

66%

9.5KG / Square Meter

3.4mm

Metart 05-41022

4x1mm

2.2x2.2mm

11%

89%

9.2KG / Square Meter

3.2mm

Metart 05-31507

3x1.5mm

7x7mm

49%

51%

7.0KG / Square Meter

3.0mm

Metart 05-31005

3x1.0mm

5x5mm

39%

61%

5.8KG / Square Meter

2.0mm

Metart 05-31204

3x1.2mm

4x4mm

33%

67%

7.6KG / Square Meter

2.5mm

Metart 05-31205

3x1.2mm

5x5mm

39%

61%

7.0KG / Square Meter

2.4mm

Metart 05-31207

3x1.2mm

7x7mm

49%

51%

5.6KG / Square Meter

2.4mm

Metart 05-31210

3x1.2mm

10x10mm

59%

41%

4.3KG / Square Meter

2.4mm

Metart 05-31510

3x1.5mm

10x10mm

59%

41%

5.4KG / Square Meter

3.0mm

Metart 05-25103

2.5x1.0mm

3x3mm

29.7%

70.3%

7.1KG / Square Meter

2.0mm

Metart 05-22134

2.2x1.0mm

3.4x3.4mm

36.8%

63.2%

6.1KG / Square Meter

2.0mm

Metart 05-22834

2.2x0.8mm

3.4x3.4mm

36.8%

63.2%

4.9KG / Square Meter

1.6mm

Metart 05-22084

2.2x0.8mm

4x4mm

37%

63%

4.0kg / Square Meter

1.6mmm

Metart 05-18186

1.8x1.8mm

6.2x6.2mm

60%

40%

6.4KG/ Square Meter

3.6mm

Application
