Architectural Metal Mesh Infill Panels for Railings - High Privacy
Pattern Code: METART-WW06-51253
Type of Wire Mesh: Rigid Architectural Metal Mesh
Materials: SS304, SS316, SS201, Pure copper, brass,bronze etc.
Opening Area: 23%
Weight: Approx 8.3kg/Square Meter
Finish: Antique Copper/Bronze/Brass Finish, Brushed Brass finish and others.
Sheet Size: within 3M x 4M ( within 10x13 feet) for mill finish.
GET A QUOTE
Discover "METART-WW06-51253": Premium Architectural Metal Mesh Panels for Railing Infills

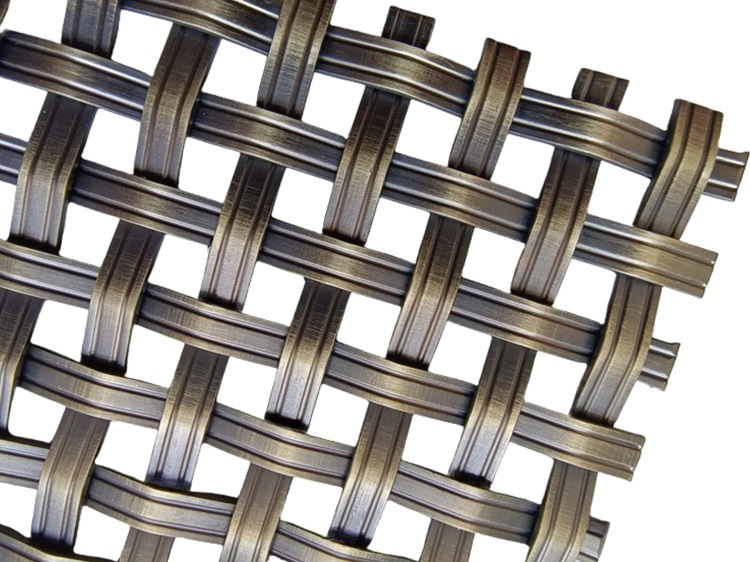

The METART-WW06-51253 is an architectural metal mesh known for its high privacy rate and extremely rigid structure.
As the most robust pattern in the WW06 series, this mesh is manufactured with minimal spacing, providing a square opening size of approximately 5.3 x 5.3 mm.
This architectural design enhances the wire mesh’s rigidity, strength, and privacy while offering increased environmental security for your space.
Like other members of the WW06 series, this decorative wire mesh is primarily made from high-quality stainless steel wire ribbons. These metal ribbons feature two shallow straight lines along both sides for decorative purposes.
The metal ribbon is 5 mm wide with a nominal thickness of 1.2 mm, ensuring substantial strength and security once fabricated into a metal screen for architectural purposes.
For those seeking a more luxurious finish, this stylish infill metal screen can also be crafted from higher-end materials such as pure copper, brass, or bronze. These options add a unique metallic touch, making it an ideal choice for commercial spaces with high-end requirements.
Explanation of the Pattern Code METART-WW06-51253
WW06 - Refers to the Woven Wire Mesh 06 series, characterized by prominent metal ribbon material with decorative lines on both sides.
512 - Represents the 5 mm wide and nominal 1.2 mm thick wire ribbon.
53 - Denotes the square opening size, approximately 5.3 x 5.3 mm.
Specification Table
|
Materials |
SS201, SS304, SS316, True Copper/ Brass / Bronze Wires |
|
Type of Mesh |
Rigid Architectural Metal Mesh |
|
Wire Strip Size: |
5x1.2mm |
|
Opening Size |
5.3x5.3mm |
|
The overall thickness of the wire mesh |
3mm |
|
Opening Rate |
23% |
|
Privacy Rate |
77% |
|
Square Meter Weight |
Approx 8.3KG |
|
All optional ways of cut |
Straight Cut or Diamond Cut |
|
All optional Finishes |
Stainless Steel Mill finish, Brass/Copper Plated Titanium-based PVD Plated Golden, Champagne Gold PVD Plated, Rose Gold PVD Plated, Grey PVD Plated, Black PVD Plated, Regular Painted, PVDF Painted, Nanocoating |
